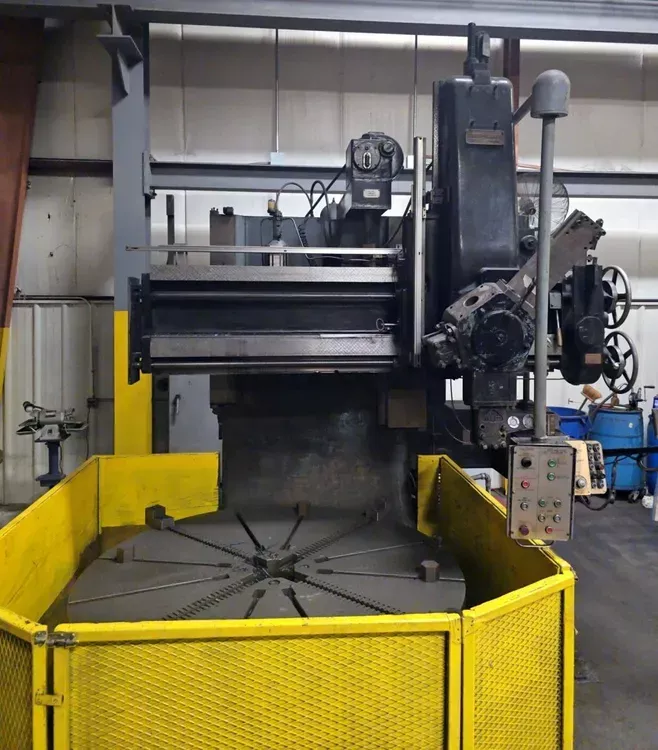

Webster & Bennett T EM Swing: 84"

12684
Price:


Table diameter: 72"
Work height under rail: 48"
Spindle power: 30 hp
Admits in diameter: 84"
Maximum diameter turned (turret side): 84"
Minimum height under cross slide: 24"
Height under cross slide with auto trip: 20.5"
Maximum height under cross slide: 48"
Vertical adjustment of cross slide: 24"
Maximum height under turret: 59"
Vertical travel of turret slide: 38"
Max boring length (bore > 32"): 38"
Max boring length (bore ≤ 32"): 28"
Spindle bore diameter: 3.25"
Horizontal turret feed from chuck center: 51.5"
Turret hole diameter: 3"
Distance from chuck to junction face: 30.5"
Distance from chuck center to front of cross slide: 19.125"
Number of spindle speeds: 12
Number of feeds: 12
Machine height: 163"
Floor space front: 120"
Floor space side: 152"
Minimum transit height: 109"
Machine weight: 33,821 lbs

30 hp main drive motor
Full pendant control
Steel guarding around chuck
1 B2 short tool holder
1 B2X long flange tool holder
1 custom super long boring tool holder
Accurite 2-axis DRO
4 chuck jaws
Ratchet handles
