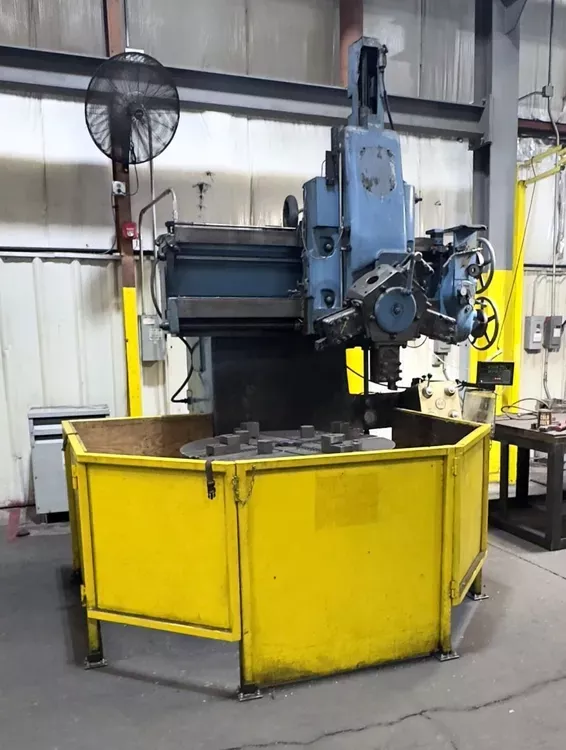

Webster & Bennett T M Table diameter: 48"

Swing: 59"
Max turning diameter (turret slide): 49"
Max turning diameter (B2 X toolholder): 56"
Height under turret: 35"
Height under cross-slide: 24"
Height under cross-slide with auto trip: 20.5"
Vertical feed of turret: 26"
Max boring length (bore > 28"): 24"
Max boring length (bore ≤ 28"): 16"
Spindle bore diameter: 3.25"
Turret horizontal feed (chuck center outward): 32"
Turret hole diameter: 3"
Number of speeds: 12
Number of feeds: 12
Main motor power: 20 HP
Main motor speed: 1440 RPM
Rapid traverse motor power: 4 HP
Rapid traverse motor speed: 570 RPM
Machine dimensions: 89" x 117" x 127"
Total working height required: 145"
Standard transit height: 127"
Minimum transit height: 98"
Approximate weight: 19026 lbs

Newall digital readout
Full chip guard
