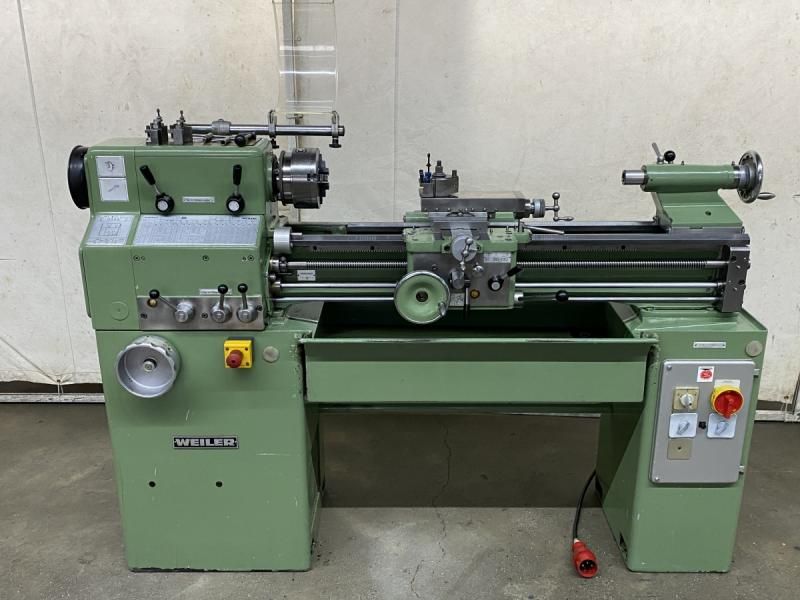

Weiler Engine Lathe 2000 rpm Praktikant 800R Lathe
Ref :
2782206-3-AW
Condition :
Used
Manufacturer :
Weiler
Type :
Engine Lathe
Spindle Speed :
2000 rpm
Model :
Praktikant 800R Lathe
Year(s) :
1984
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Center distance: 800 mm
Turning diameter over bed: 280 mm
Turning diameter over slide: 160 mm
Center height over bed: 140 mm
Center height over slide: 80 mm
Spindle bore: 36 mm
Spindle speed: 42 – 2000 rpm
Spindle motor power: 1 / 1.6 kW
Spindle speeds via 2 motor speeds and 8 gearbox stages
Longitudinal feed
Cross feed
Chuck mount: short taper DIN 55027 size 5
Tailstock taper: MK 3
Tailstock quill travel: 90 mm
3-jaw scroll chuck Ø 160 mm
RÖHM ZS chuck with one set of stepped jaws
MULTIFIX quick-change toolpost size A
3 tool holders included
Emergency stop
Folding chuck guard
Operating manual included
Electrical diagram included
Machine dimensions: 1900 x 700 x 1300 mm
Machine weight: 560 kg
