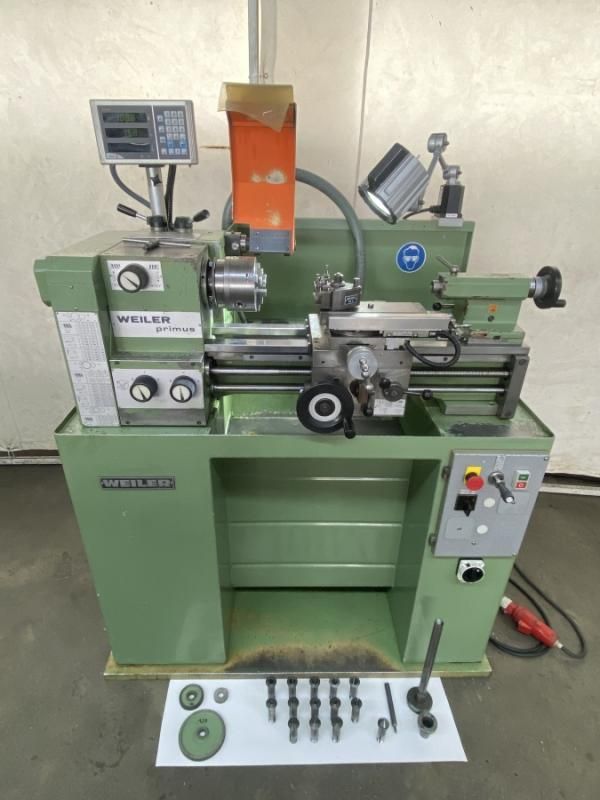

Weiler Engine Lathe 3000 rpm (18 gear steps) LZ PRIMUS GS

Centre width (distance between centres): 400 mm
Turning diameter over bed: 250 mm
Centre height above bed: 125 mm
Turning diameter over support: 140 mm
Centre height above support: 70 mm
Spindle bore: 24 mm
Spindle speed range: 60-3000 rpm (18 gear steps)
Drive power: 1.1 kW and 1.5 kW (pole-changing)
Chuck flange short taper DIN 55022 size 4
Tailstock taper: MK 2
3-axis digital readout FAGOR type 30i-T-B
Spindle speed via 2 motor speeds and 9 gear stages
3-jaw lathe chuck RÖHM Ø 125 mm with stepped jaws
MULTIFIX quick-change tool holder with 1 interchangeable cassette
Collet set Ø 1 / 3 / 4 / 5 / 7 / 8 / 10 / 14 / 15 / 16 / 17 / 19 / 20 mm
Emergency stop
Hinged chuck guard
Splash guard
Machine light
Space requirement: L × W × H: 1200 × 900 × 1560 mm
Weight: 520 kg
