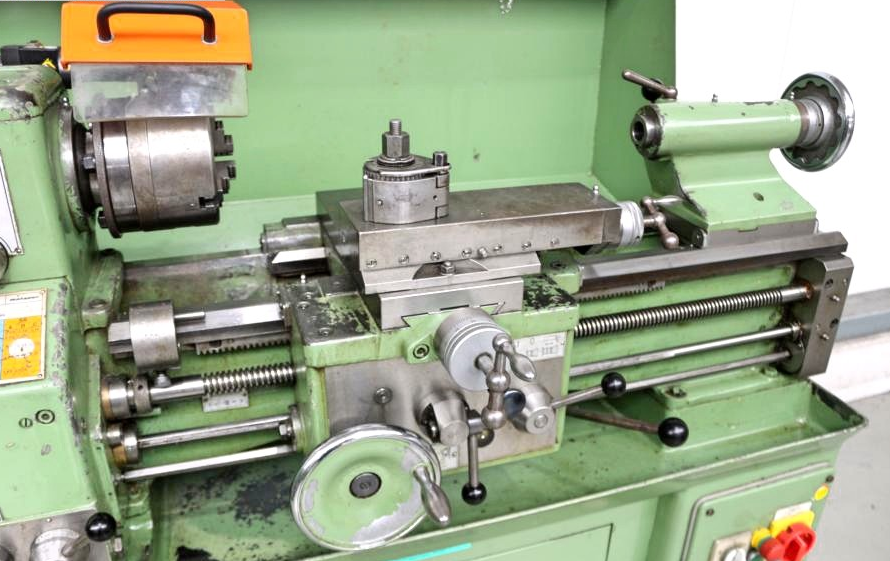

Weiler Engine Lathe 3550 rpm MATADOR VS

Turning Length: 500 mm
Turning Diameter Over Bed: 297 mm
Turning Diameter Over Slide Rest: 160 mm
Spindle Bore: 36.0 mm
Tool Adaptor: DIN 55022 Gr. 5
Quill: 3 MK
Quill Travel: 90.0 mm
Turning Speeds: 30 - 3550 rpm
Motor Speeds: 1410 / 2830 rpm
Total Power Requirement: 3.3 kW
Voltage: 380 V
Machine Weight: 620 kg
Machine Size (L x W x H): 1420 x 700 x 1200 mm

Robust lead/pull spindle lathe
Klopfer four-jaw chuck Ø 140 mm
Klopfer three-jaw chuck Ø 140 mm
Collet holder with many collets
Foldable lathe chuck guard
Chuck key
Multifix steel holder A with 3 new inserts
Movable tailstock
Adjustable bed stop
Control panel front left
Automatic feeds for face and top support
Pole-changing drive motor
Machine base frame with cabinet door
Chip splash guard rear wall
Emergency stop button bottom right
Machine swing feet
Original operating instructions
