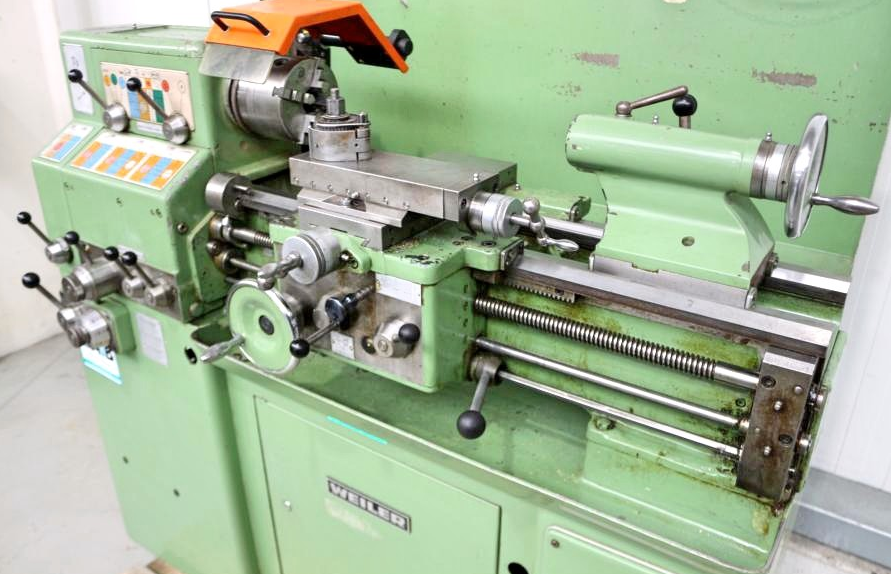

Weiler Engine Lathe 3550 rpm MATADOR VS

Turning length: 500 mm
Turning diameter over bed: 297 mm
Turning diameter over slide rest: 160 mm
Spindle bore: 36 mm
Tool adaptor: DIN 55022 Gr. 5
Quill: 3 MK
Quill travel: 90 mm
Turning speeds: 30–3550 rpm
Motor speeds: 1410 / 2830 rpm
Total power requirement: 3.3 kW
Voltage: 380 V
Weight: 620 kg
Dimensions (LxWxH): 1420 x 700 x 1200 mm

Robust lead/pull spindle lathe
KLOPFER four-jaw chuck Ø 140 mm
Collet holder with collets
Foldable lathe chuck guard
Chuck key
MULTIFIX tool holder A with 3 new inserts
Movable tailstock
Adjustable bed stop
Control panel front left
Automatic feeds for face and top support
Pole-changing drive motor
Machine base frame with cabinet door
Chip splash guard rear wall
Emergency stop button bottom right
Machine swing feet
