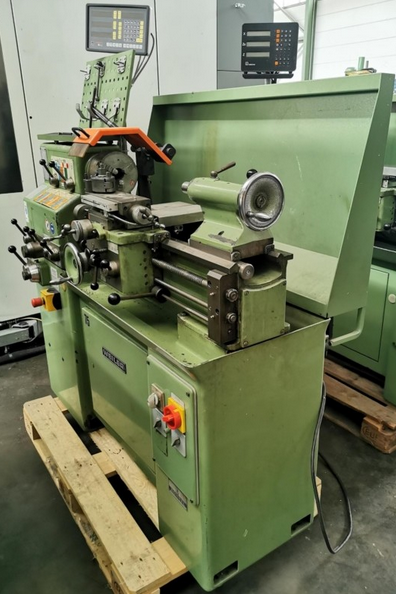

Weiler Engine Lathe 3550 rpm MATADOR

WEILER MATADOR
Year of Manufacture: 1977

Swing over bed: 280 mm
Swing over cross slide: 160 mm
Turning length: 500 mm
Center height: 140 mm
Distance between centers: 500 mm
Spindle bore: 36 mm
Spindle speeds: 15 - 3550 rpm
Spindle nose: DIN 55022 size 5
Longitudinal feeds: 0.008 - 0.560 mm/rev
Cross feeds: 0.004 - 0.280 mm/rev
Thread pitches - metric: 0.2 - 12 mm
Lead screw diameter: 24 mm
Lead screw pitch: 6 mm
Tailstock taper: MK 3
Tailstock quill stroke: 90 mm
Tailstock offset from center: 15 mm
Total power requirement: 2.2 kW
Machine weight approx.: 0.6 t
Machine dimensions (L x W x H): 1.40 x 0.70 x 1.20 m

Features:
3-axis digital readout
RÖHM 3-jaw chuck 160 mm diameter
MULTIFIX tool post size A
live center
machine from training workshop
