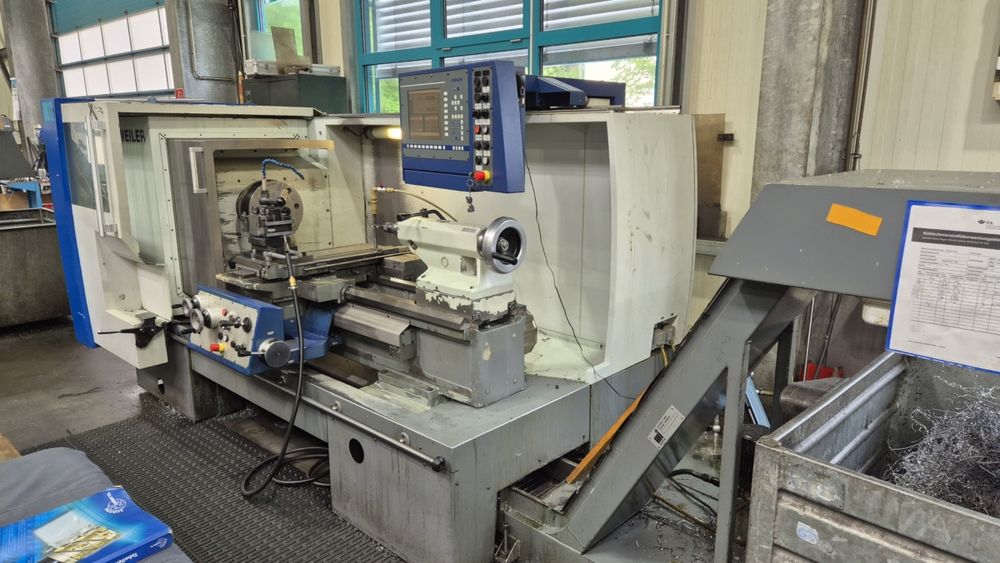

Weiler WEILER D3 2500 rpm E55 x 1000 2006 2 Axis

Control: WEILER D3
Turning Diameter: 570 mm
Turning Length: 1000 mm
Swing Diameter Over Slide Rest: 325 mm
Swing in Gap: 600 mm
Gap Length: 140 mm
Spindle Bore: 83 mm
Spindle Diameter in Front Bearing: 120 mm
Face Stroke: 340 mm
Longitudinal Stroke: 1100 mm
Max. Workpiece Weight: 1200 kg
Spindle Speed: 1 - 2500 rpm
Transmission Ratio: 2
Rapid Travel Longitudinal/Face: 10 / 5 m/min
Main Drive Motor Power: 20 / 17 kW
Tailstock Quill Diameter: 80 mm
Tailstock Quill Stroke: 200 mm
Tailstock Quill Taper: MT5
Switch-On Hours: 28970 h
Chip Conveyor
Toolholder Multifix with Several Inserts
3-Jaw Chuck SCHUNK ROTA-S Plus 315-92
Machine Weight: 3.8 t
Machine Dimensions: 2.95 × 1.90 × 1.82 m
