Weiler Weiler ONE1 Conversational CNC 500 rpm E-90 x 236" 2 Axis

Max swing: 35.43"
Max swing over cross slide: 23.23"
Distance between centers: 236"
Spindle nose: 20
Spindle bore diameter: 14.25"
Main motor: AC 60/50 hp, 2 gear stages
Total spindle speed: 1 – 500 rpm

Parat Size 4 Quick Change Indexable Tool Post
4 x WDR 4/40 Turning & Facing Holders
2 x WB 4/60 Ø 2.0” Diameter Boring Bar Holders
32” 4-Jaw Oil Country Independent Chuck front with 14.37” hole
32” 4-Jaw Oil Country Independent Chuck rear with 14.37” hole

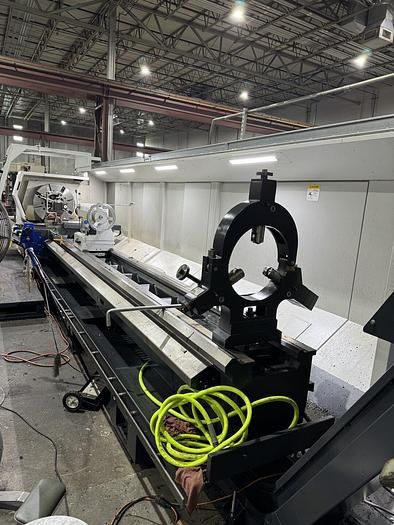

Steady rest with roller jaws 8.66” – 15.75” diameter
Rear quill adjustable from front
Extended quills for roller jaws 0.787” – 8.66” diameter
Chip conveyor for 236” center distance machine
Removable 4” diameter boring bar block
Increased capacity coolant
Used condition
