Weiler Weiler ONE1 Conversational CNC Control 500 rpm E-90 X 6000 2 Axis

Ref : 2730639-3-MT
Condition : Used
Manufacturer : Weiler
Controller : Weiler ONE1 Conversational CNC Control
Spindle Speed : 500 rpm
Model : E-90 X 6000
Nb Of Axis : 2 Axis
Year(s) : 2023
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

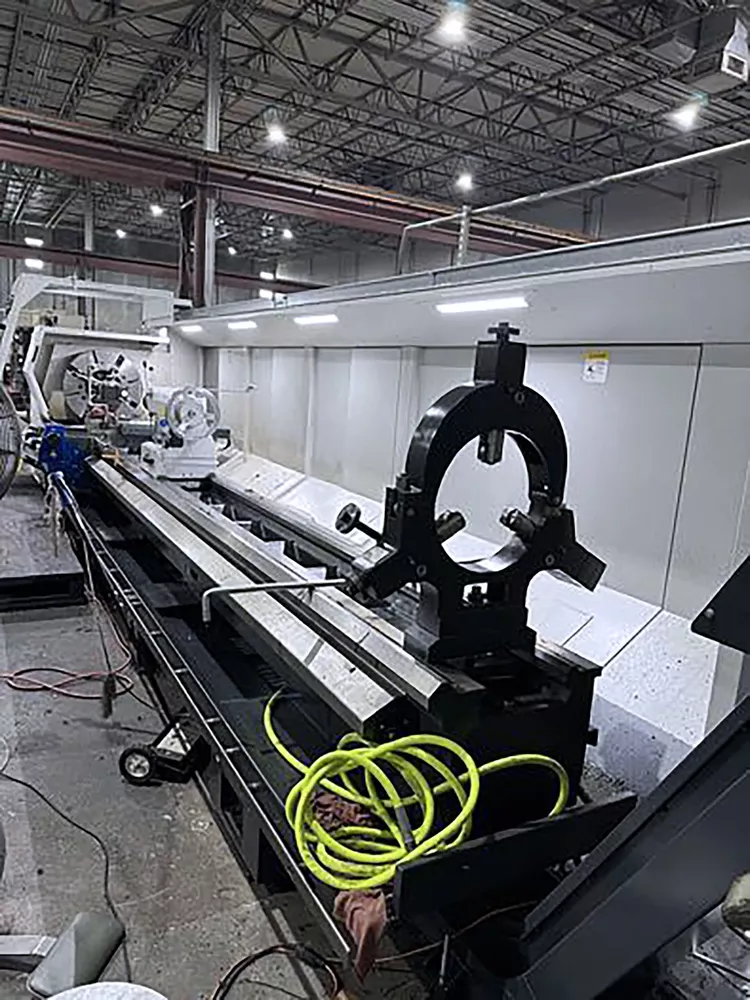

WEILER E-90 X 6000
2023

Max swing: 35.43"
Max swing over cross slide: 23.23"
Distance between centers: 236"
Main motor (2 gear stages): AC 60/50 hp
Total speed: 1 ~ 500 rpm
Spindle nose: 20
Spindle bore diameter: 14.25"

Weiler ONE1 Conversational CNC Control
Parat Size 4 quick change indexable tool post
4 x WDR 4/40 turning & facing holders
2 x WB 4/60 Ø 2.0” diameter boring bar holders
32” 4-jaw oil country independent chuck with 14.37” hole (front)
32” 4-jaw oil country independent chuck with 14.37” hole (rear)
Steady rest with roller jaws 8.66”–15.75” diameter
Rear quill adjustable from front
Extended quills for roller jaws 0.787”–8.66” diameter
Chip conveyor for 236” center distance machine
Removable 4” diameter boring bar block
Increased capacity coolant
