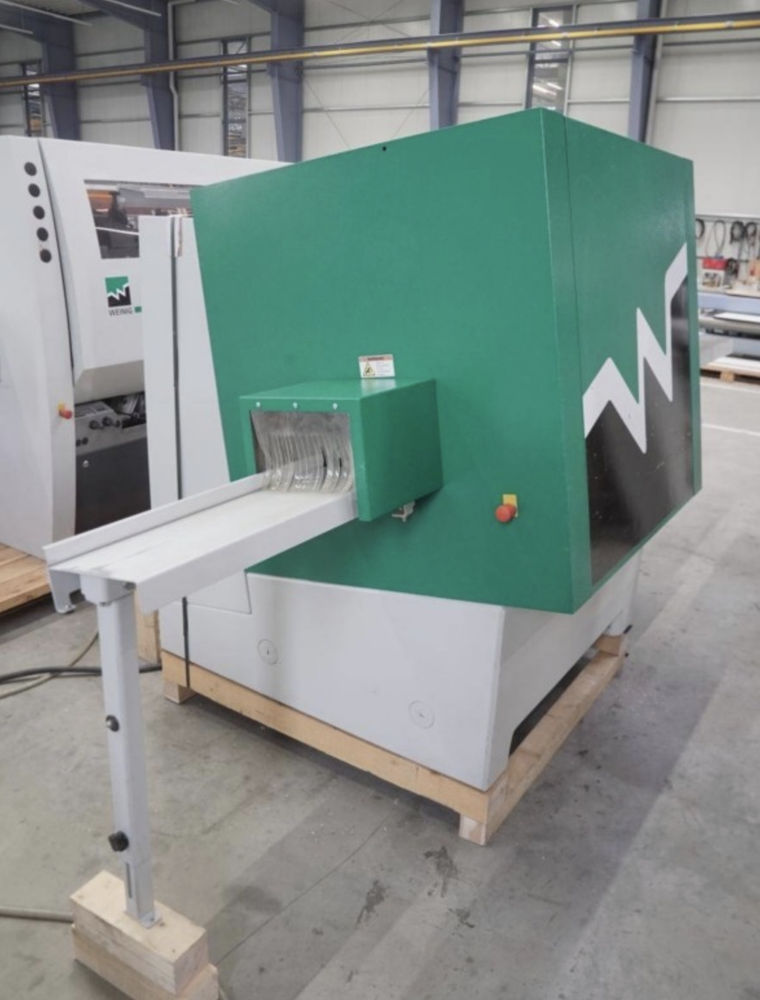

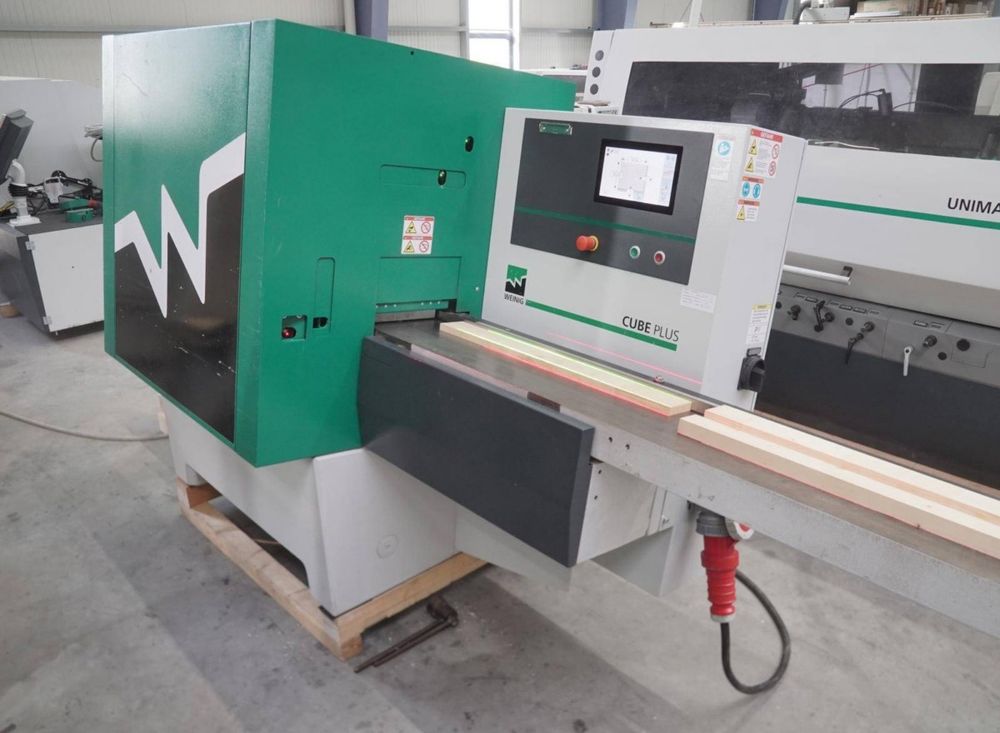

Weinig Cube Plus

Planing width max. 260 mm
Planing width min. 20 mm
Planing height max. 160 mm
Planing height min. 5 mm
Number of spindles: 4
Upper spindle power: 7.5 kW
Lower spindle power: 7.5 kW
Spindle speed max. 6,000 rpm
Spindle diameter: 40 mm
Table length: 2,500 mm
Number of cutter heads: 4
Main motor: 11 kW
Max. feed: 12 m/min
Infinitely variable feed

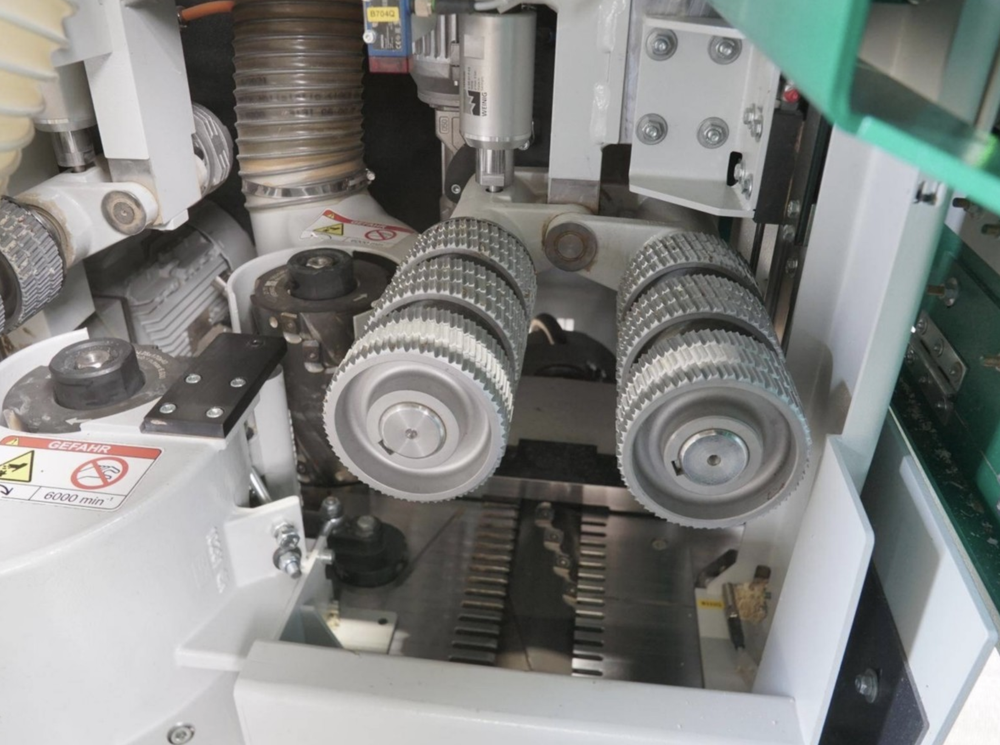

Intermittent feed roller
Planing height motorized, program-controlled
Planing width motorized, program-controlled
Program control: Mobile spindle

Laser alignment light
Motorized adjustment

Automatic lubricant pump

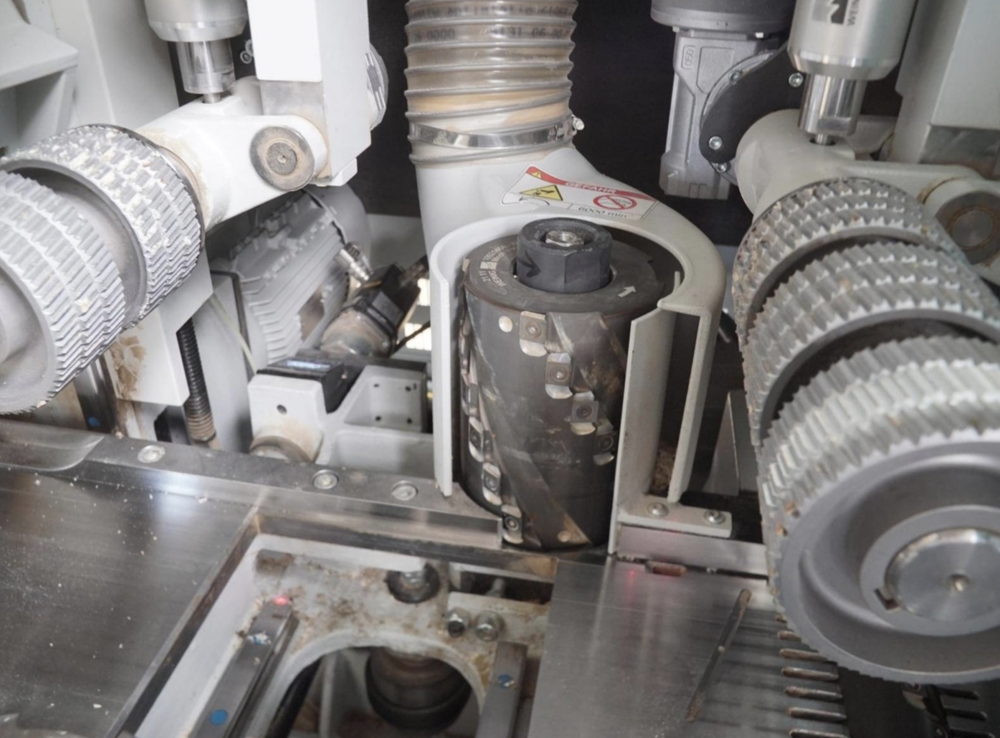

Reversible knives: Yes, spiral cutter block
WEINIG MPV

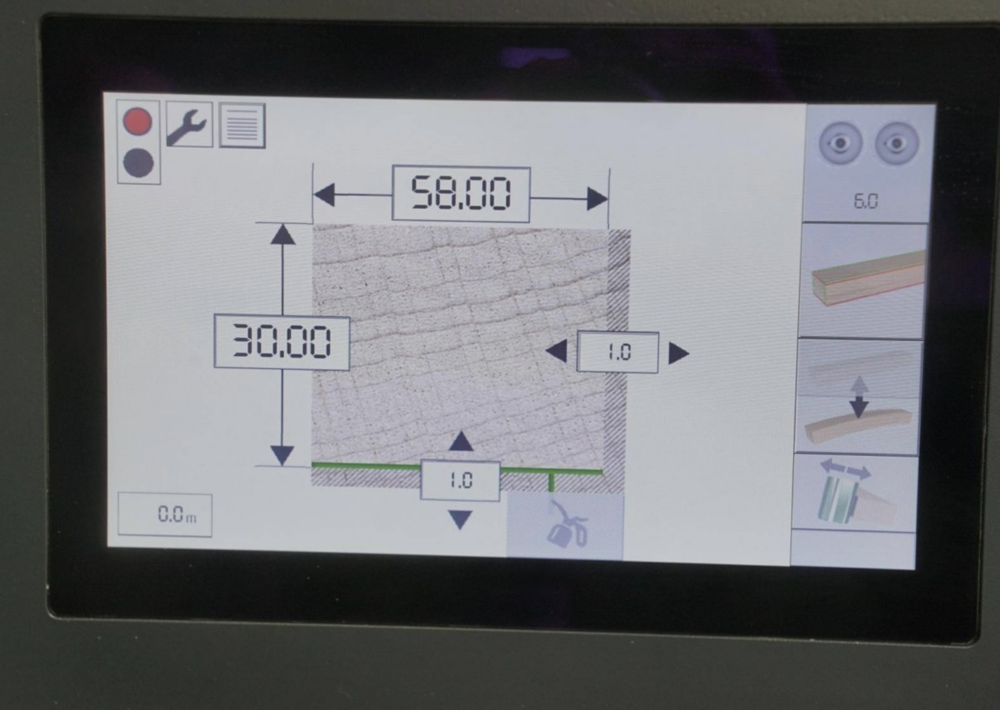

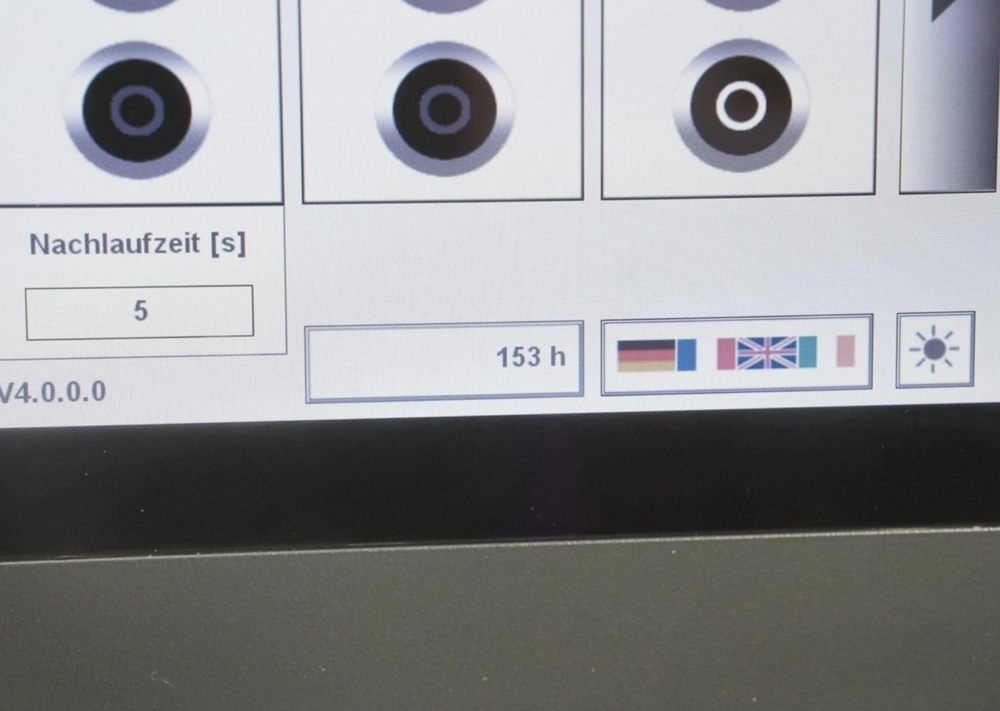

Touchscreen
Software: WEINIG CUBE SOFTWARE
CE Mark

Total power consumption: 28 kW
Weight approx. 2,200 kg
Space requirement length: 4.35 m
Space requirement width: 2.4 m
Space requirement height: 2.2 m
