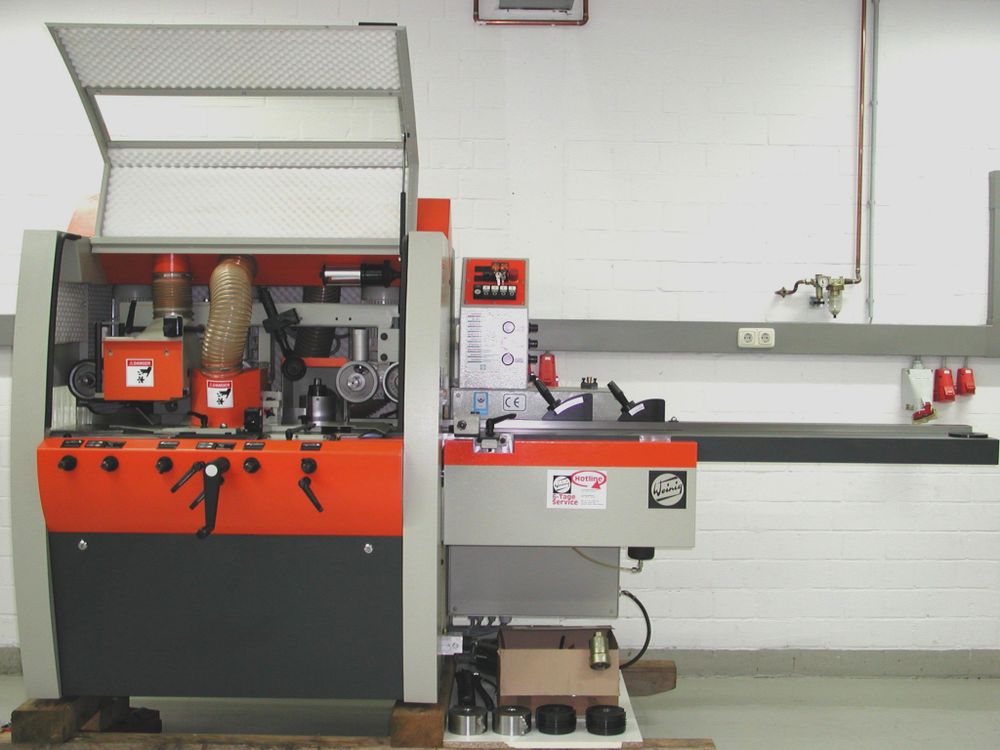

Weinig Quattromat Q23P

Machine with full enclosure and integrated sound and dust protection.
Fully enclosed machine with integrated sound and dust protection.

Technical Data:
Planing width: min. approx. 13 mm / max. 230 mm (with a 125 mm cutting circle)
Planing height: min. approx. 6 mm / max. 120 mm (with a 125 mm cutting circle)
Feed rate: 8 m/min., feed motor 1.5 kW

Spindle sequence:
Spindle at bottom, motor 5.5 kW
Spindle on the right (jointing) / 3rd spindle on the left, motor 7.5 kW
Spindle at top, motor 5.5 kW
Spindle diameter D = 40 mm

Accessories/Extras:
2000 mm jointer table with jointing guide (10 mm travel)
Rebate attachment with jointing cutter
Manual wax pump
Pneumatic pressure on the feed rollers
Pneumatically indexed infeed roller before jointer
Central lubrication points on the front of the machine
SICO counters
Set of planer heads WEINIG Centrolock 533

Operating instructions, operating tools, spare parts catalog, and electrical diagram included.
Extraction / Connection / Dimensions:
Central extraction port ø 250 mm
Air velocity: 26-30 m/s
Total power consumption approx. 19 kW

Machine dimensions:
Length: 3,050 mm
Width: 1,230 mm
Height: 1,640 mm

Condition:
The machine is in very good technical and visual condition.
