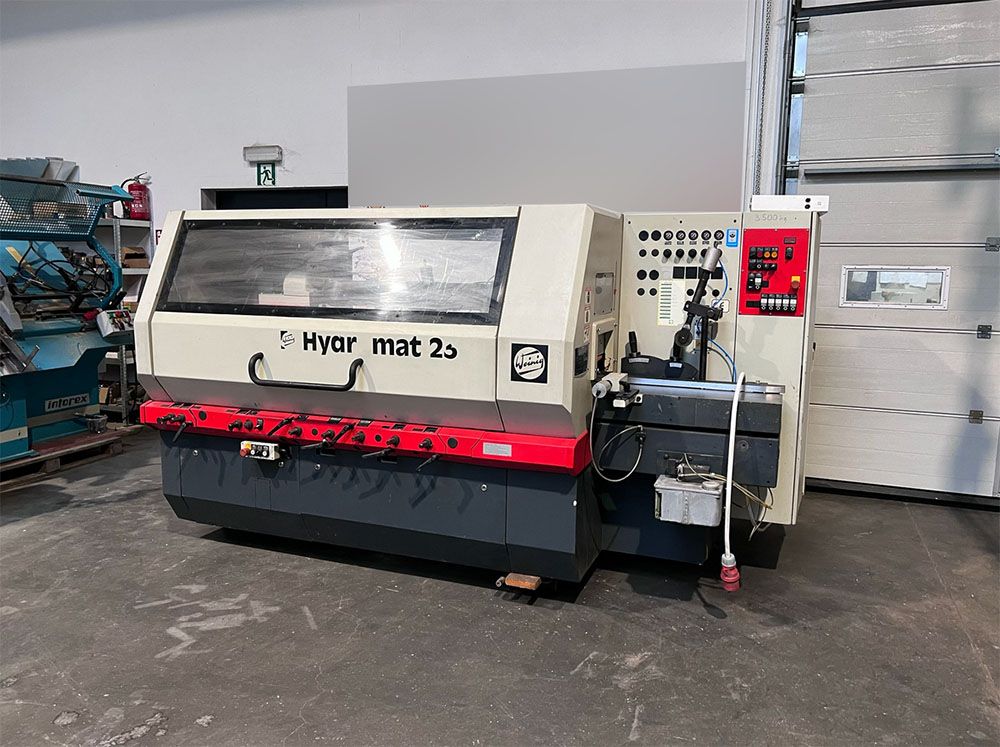

Weinig Hydromat 23C

Four-sided planer
Working width 230mm
Working height 160mm
Number of spindles 5
Spindle arrangement:

1. Lower 15kw
2. Right 11kw
3. Left 11kw
4. Upper 15kw
5. Lower 7.5kw

Spindle speed 6000 rpm
Spindle diameter 50mm
3 pulling rollers in the work table
Feed speed adjustable via inverter up to 60 m/min
Feed driven by cardan shaft
Pneumatic clamps
Technical documentation
Machine dimensions 300x180x170cmH
Weight 3500kg
