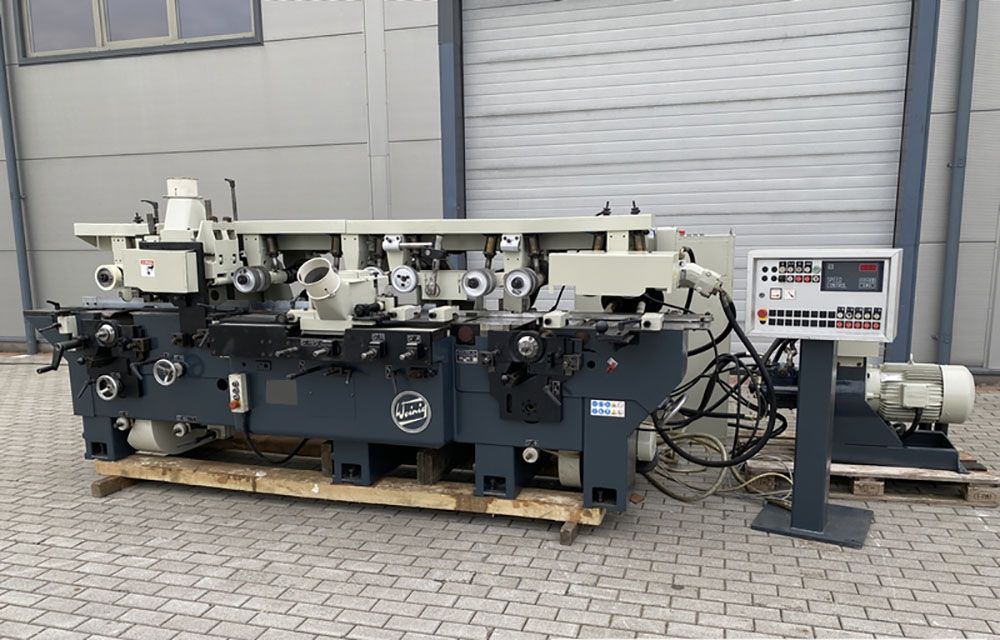

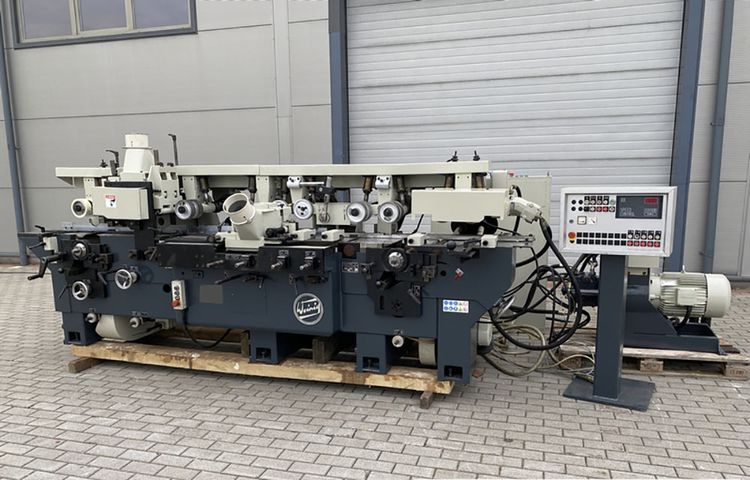

Weinig Hydromat H22N

Four-sided planer
TECHNICAL PARAMETERS:
- Planing width 220 mm
- Planing height 140 mm
- Spindle diameter 50 mm

1 Lower head 7.5 kW
2 Right head 7.5 kW
3 Left head 11 kW
4 Upper head 7.5 kW
5 Lower head 11 kW
Hydraulic feed
Pump motor power 15 kW
Feed speed continuously adjustable up to 60 m/min
Feed on cardan shafts
Electric height adjustment
Pneumatic clamp
Five pull rollers in the table
Eight upper steel pull rollers
One upper rubber pull roller
Steel rests on horizontal spindles
Joint on lower spindles
Shipping dimensions: 500x200x160 cm
Weight 4 t
