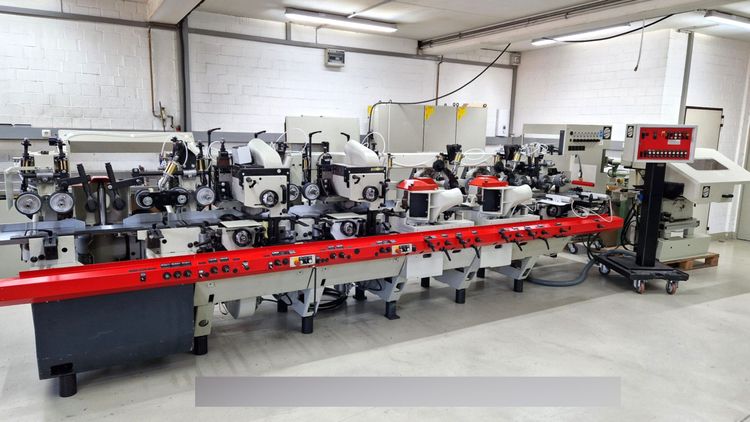

Weinig Hydromat H23 Linie
EUROPE (Western and Northern)
** WEINIG HighMech E-1 cross conveyor with 6 flat chains, approx. 2,000 x 3,500 mm
** WEINIG Model 814 hydraulic accelerator
** Short infeed table with heavy-duty 4-roller infeed
Automatic planer with reinforced KASCHWIG soundproof cabin on 3 sides
Max. working width 230 mm
Max. working height 160 mm
Electronic frequency-controlled feed 8 – 80 m/min.
Feed motor 18.5 kW
1. Lower spindle 11.0 kW
2. Right spindle 11.0 kW
3. Left spindle 11.0 kW
4. Right spindle 11.0 kW
5. Left spindle 11.0 kW
6. Upper spindle 15.0 kW
7. Lower spindle 11.0 kW
8. Upper spindle 15.0 kW
9. Lower spindle 15.0 kW
10. Universal spindle 11.0 kW (4-sided)
Spindle speed 6,000 rpm.
Spindle diameter ø 50 mm
All spindle motors with NEW soft start brake combination
Pneumatically supported pressure rollers from above
Feed rollers D = 140 mm
6 driven rollers in the table
Spindles 1 + 6 + 7 + 8 + 9 with counter bearing
Spindle 8 + 9 with straight jointer
Spindle 8 + 9 with profile jointer
Spindle 6 + 8 pneumatic pressure
Shortened feed roller spacing
Hard chrome-plated table tops
Hard chrome-plated stops
Pneumatically supported pressure rollers on the sides
Automatic table lubrication
Centrally positioned lubrication points
Freestanding control panel
Total connected load approx. 145 kW / approx. 400 A
Freestanding control cabinet
Operating instructions, spare parts list, and circuit diagram
Machine without planer heads
Machine dimensions approx.:
Length 6,000 mm
Width 2,250 mm
Height 1,800 mm
Weight approx. 8,500 KG
