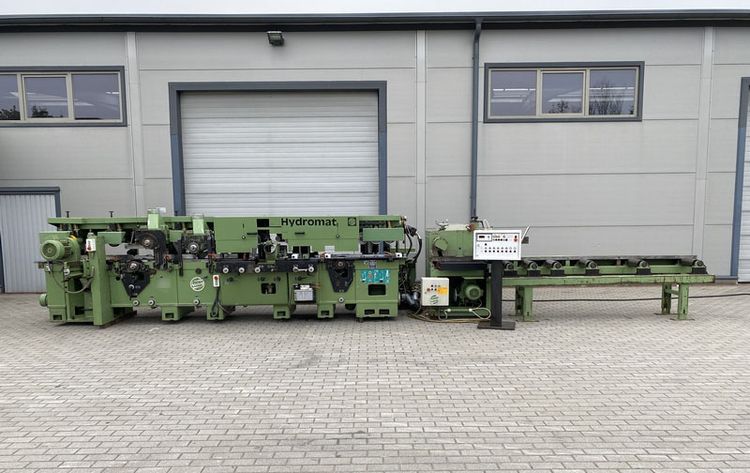

Weinig Hydromat H25N

Four-sided planer with feeder
Planing width 250 mm
Planing height 190 mm
Spindle diameter 50 mm
Electric height adjustment
1 Lower spindle 15 kW
2 Right spindle 7.5 kW
3 Left spindle 15 kW
4 Right spindle 7.5 kW
5 Upper spindle 7.5 kW
6 Upper spindle 15 kW
7 Lower spindle 7.5 kW
8 Universal spindle 1800 7.5 kW
Feed speed continuously adjustable up to 100 m/min
Feed pump motor power 22 kW
Nine rollers in the table, three of which are in front of the first head
Seven rollers Upper steel pull rollers
Four upper rubber pull rollers
Pneumatic pressure
Joint on spindles 1-6-7
Automatic table lubrication

3000 mm feed table
Infinitely adjustable speed up to 100 m/min
Two upper pneumatic rollers
Six lower pull rollers
Minimum material length: 650 mm
Shipping dimensions: 11000 x 2400 x 2000 mm
Weight: 9 t
