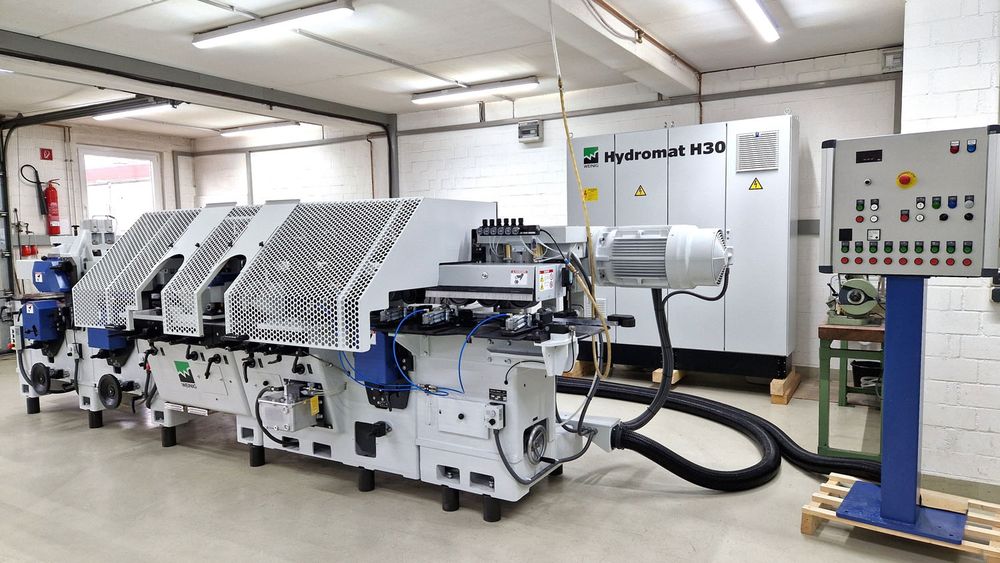

Weinig HYDROMAT H30

Heavy duty 6-roller infeed block
Working section max. 300 x 140 mm
Electronic feed variable 12 – 120 m / min.
Feed motor 22,0 KW

1. spindle bottom 11,0 KW
2. spindle right 11,0 KW
3. spindle left 15,0 KW
4. spindle left 11,0 KW
5. spindle right 11,0 KW
6. spindle top 22,0 KW
7. spindle bottom 30,0 KW
8. spindle top 11,0 KW
9. spindle bottom 11,0 KW

All spindle motors with NEW electronic brakes
9 pcs factory new spindles
Spindle diameter ø 50 mm
Spindle speed 6.000 rpm.

6 driven rollers in the table – hard chrome plated
Spindles 1 + 6 + 7 + 8 + 9 with new counter bearings hydraulic counter bearing locking
Spindles 2 + 3 + 8 + 9 with straight jointer
Spindles 4 + 6 pneumatic pressure
New feed rollers D=170 mm

Hard chromed table tops
Hard chromed fences
pneumatic powered top pressure rollers
pneumatic powered side pressure rollers
automatic bed lubrication – compl. new system
central position of lubrication points

NEW control panel free-standing, 5m cable
NEW master cabinet free-standing, 5m cable
Operating instructions, spare parts list and circuit diagram
M/C Dimension: appr. 6,20 x 2,20 x 1,90 m
Weight: appr. 9.000 kg
Connected load: 157 kW
Machine in almost as factory new condition.
