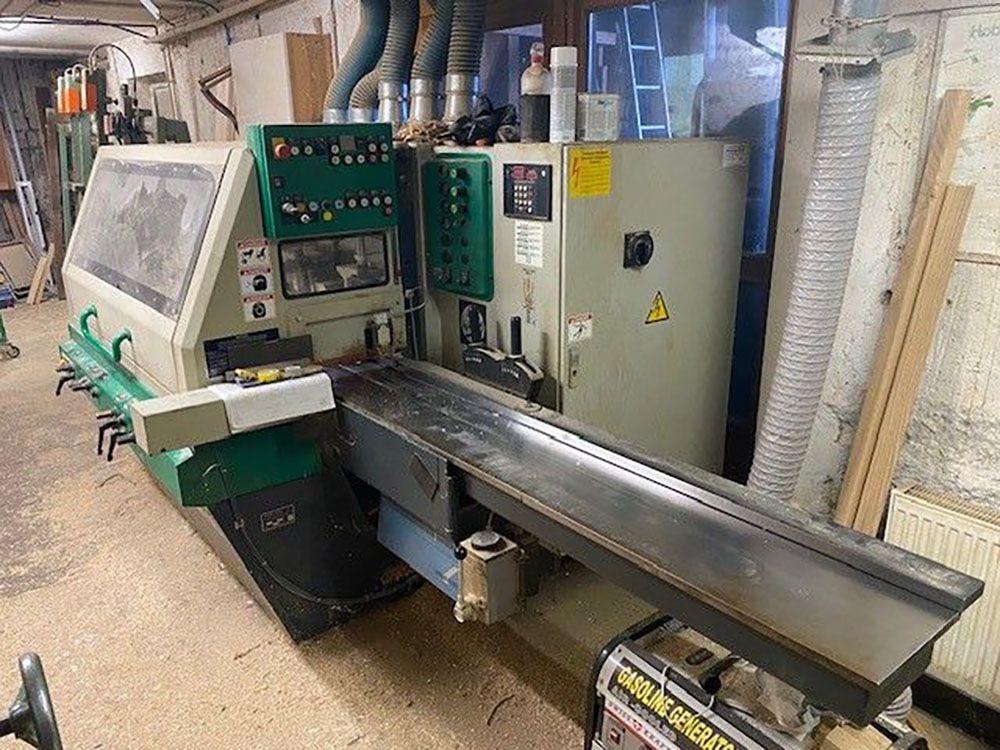

Weinig P 23

Max. working width: 230 mm
Max. working height: 120 mm
Number of spindles: 5

1st spindle: bottom
Spindle diameter: 40 mm
Clamping length: 240 mm
Speed: 6000 rpm
Motor power: 4.0 kW

2nd spindle: right
Spindle diameter: 40 mm
Clamping length: 140 mm
Speed: 6000 rpm
Motor power: 7.5 kW
Shared motor with the left spindle
Right spindle: pneumatically cycled up/down with selector switch (45 mm)

3rd spindle: left
Spindle diameter: 40 mm
Clamping length: 140 mm
Speed: 6000 rpm
Mobile spindle

4th spindle: top
Spindle diameter: 40 mm
Clamping length: 240 mm
Speed: 6000 rpm
Motor power: 5.5 kW

5th spindle: bottom
Spindle diameter: 40 mm
Clamping length: 240 mm
Speed: 6000 rpm
Motor power: 4.0 kW

Motor brakes: mechanical
Upper spindle height/lower adjustment: manual
Feed brake system: Yes
Infinitely variable feed speed: 5 - 24 m/min
Feed roller pressure: pneumatic
Feed power: 2.2 kW
Feed drive: Cardan shaft
Lubricant pump: manual
Max. chip removal for joining: 10 mm
Joining bevel cutter on planer: Yes
Driven rollers in table: 1
Control type: Knob operation
Spindle dimension display: mechanical numerical display
Feed rollers in front of planer: Yes
