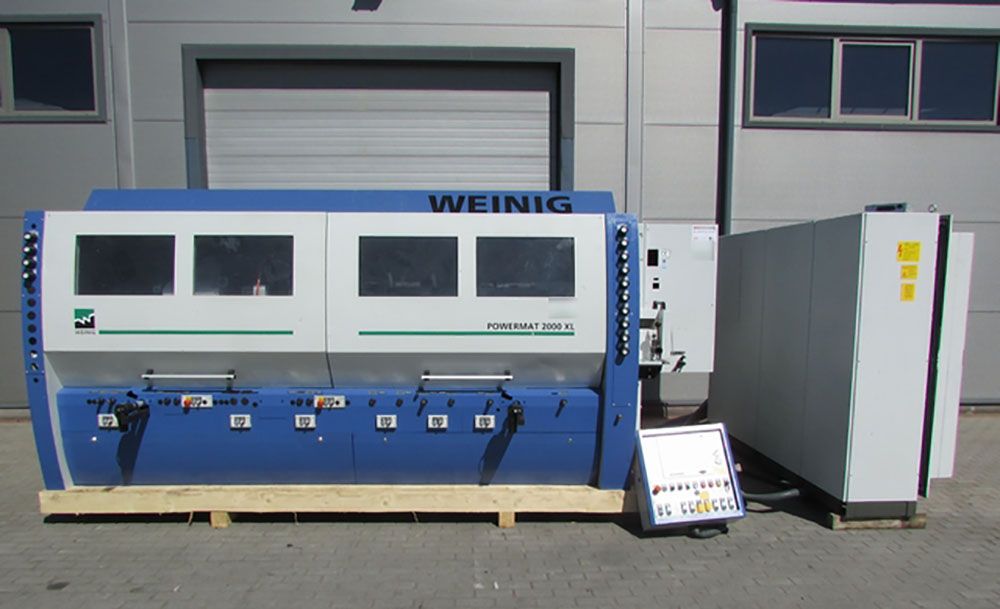

Weinig Powermat 2000 XL

Four-sided planer
- Planer width 300 mm
- Planing height 200 mm
- PowerLock heads
- Touchscreen control
- Electronically adjustable heads
- Pneumatic pressure pads
1 Lower head 18.5 kW
2 Right head 15 kW
3 Left head 15 kW
4 Upper head 22 kW with 1.5 kW side cutter
5 Upper head 18.5 kW
6 Lower head 20 kW
- All heads with automatic jointing system
- Spindle speed 8000 rpm
- Feed speed adjustable via inverter: 6 - 60 m/min
- Six upper steel pull rollers
- Three upper rubber pull rollers
- Upper feed rollers with support
- Six pull rollers in the table, two of which are milled before the first head
- Automatic central Lubrication
- port diameter 4 x 160 and 2 x 140 mm
