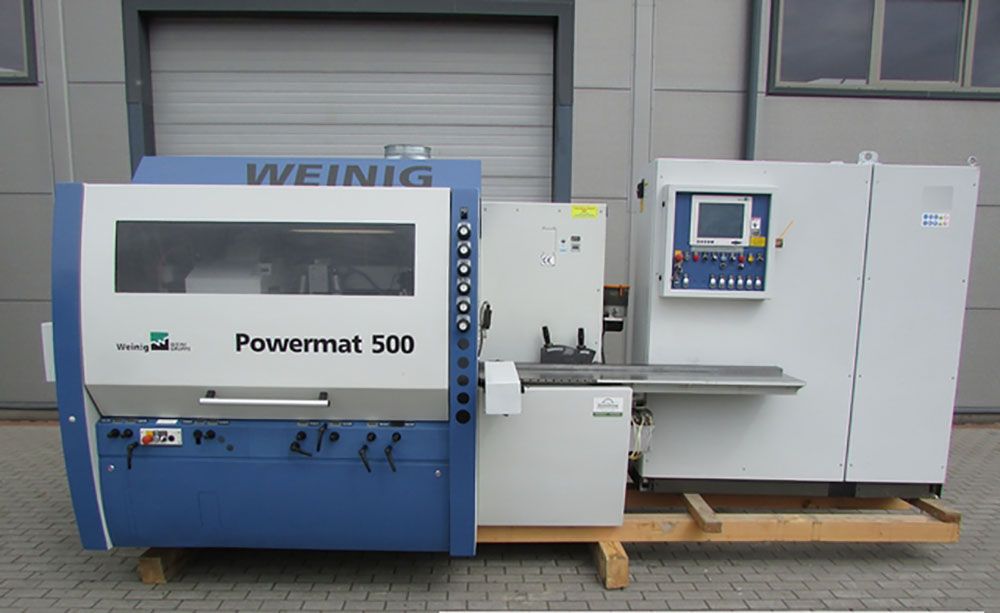

Weinig Powermat 500 Powerlock 300/200

Four-sided planer
TECHNICAL PARAMETERS:
Planing width 300 mm
Planing height 200 mm
PowerLock tool mounting
PowerCom control with top and left spindle positioning
Spindle 1 11 kW
Spindle 2 11 kW
Spindle 3 11 kW
Spindle 4 15 kW
Spindle 5 15 kW
Milling spindle 1.5 kW 12,000 rpm
Spindle speed 8,000 rpm
Feed rate continuously adjustable 6-36 m/min
Feed motor power 4 kW
Four upper steel pull rollers
One upper rubber pull roller
One pull roller in the table
Table air cushion
Automatic central table lubrication
Automatic spindle guide lubrication
Feed table length 1970 mm
Connection diameter: 2 x 140 mm, 3 x 160 mm, 1 x 80 mm
Total power: 70 kW, 140 A
Machine dimensions: 500 x 225 x 242 cm
Weight: 3000 kg
