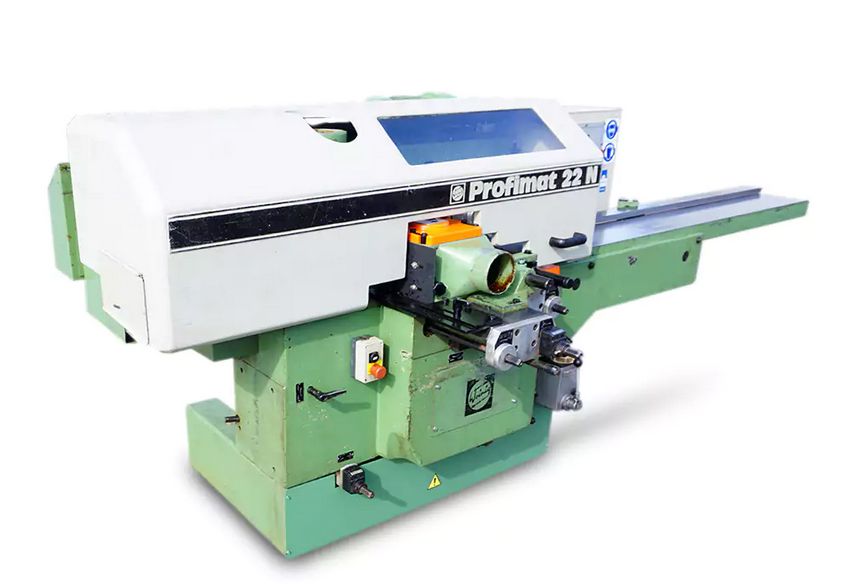

Weinig Profimat 22N

Four-side planer
Max width of the workpiece 220 mm
max. height of the workpiece 130 mm

- 4 spindles:
1) horizontal lower 220mm 4kW
2) vertical right 130mm +
3) vertical left 130mm; (2 and 3 spindles) 5,5kW
4) horizontal upper 220mm 4kW

all spindles adjustable up / down, right / left +
all spindles equipped with a brake +
diameter of spindles 40 mm
4 top feed rollers, including 2 double +
from above 1 double pulling outfeed roller, rubber +
from below, pulling roller, rubber +
feed on cardan shaft +
Smooth feed speed regulation +
feed motor 2,2kW
lifting engine 0,25kW
electric adjustment of planing thickness +
length of the countertop 1970 mm
central lubrication +

diameter of the extraction nozzle 3x120mm, 140mm
closed in the cabin +
dimensions length / width / height 3400x1330x1650mm
weight 1700kg
