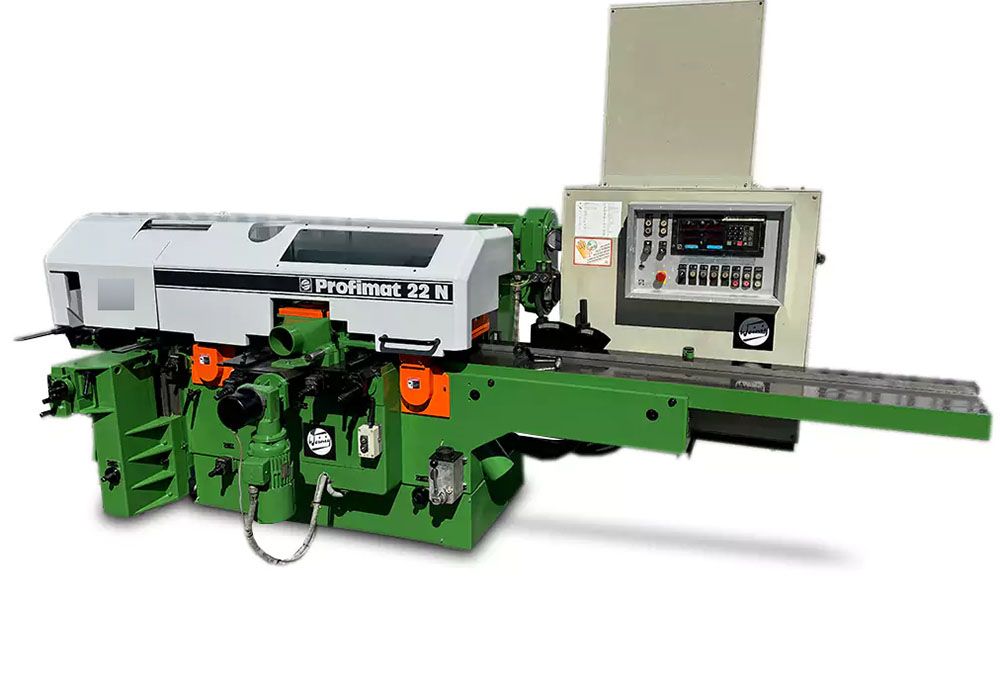

Weinig Profimat 22N

Four-sided planer with ATS
Max width of the workpiece 220 mm
max. height of the workpiece 130 mm

6 spindles:
1) horizontal lower 220mm around 5,5kW
2) vertical right 130mm +
3) vertical left 130mm; (2 and 3 spindle) 11kW
spindle 3 electrically adjustable right/left +
4) horizontal upper 220mm 11kW
4 electrically adjustable top / bottom spindle +
5) horizontal lower 220mm 5,5kW
6) universal 220mm, angle adjustable 5,5kW
all spindles adjustable up / down, right / left +
1,4,6 spindles equipped with a brake +
diameter of spindles 40 mm

5 metal, toothed, feeding, pulling rollers from above, including 1 double roller +
2 double, smooth, rubber, pulling rollers from above +
bottom output roller, rubber, pulling +
Smooth feed speed regulation +
rollers pressed pneumatically +
feed motor 3kW
feed on cardan shaft +
electric adjustment of planing thickness +
body lifting engine 0,55kW
length of the countertop 1970 mm
closed in the cabin +
central lubrication of the top +
diameters of the extraction pipe 4x120mm, 140mm
dimensions length / width / height 4050x1700x2400mm
weight around 1800kg

The planer is intended for the multilateral processing of wooden straight elements.
- max width of the workpiece 220mm
- max height of the workpiece 130mm
ATS - electric control from the desktop, spindle 3 and 4 together with the machine body
