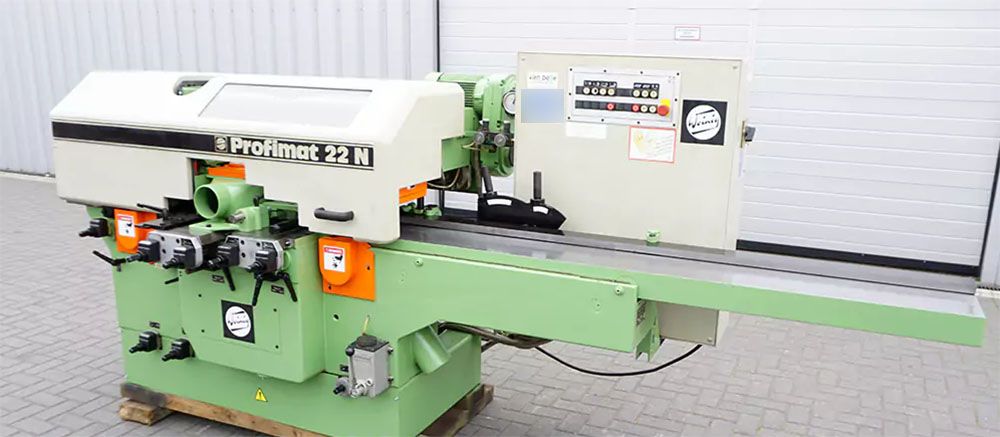

Weinig Profimat 22N

Four-side planer
Max width of the workpiece 220 mm
max. height of the workpiece 120 mm

- 5 spindles:
1) horizontal lower 220mm 5,5kW
2) vertical right 120mm +
3) vertical left 120mm; 2 and 3 7,5kW
4) horizontal upper 220mm 5,5kW
5) horizontal lower 220mm 7,5kW

all spindles adjustable up / down, right / left +
diameter of spindles 40 mm
pneumatic clamps +
4 top feed rollers, including 2 double +
From the top, pulling roller, smooth, rubber +
from below, pulling roller, rubber +
feed on cardan shaft +
Smooth feed speed regulation 6-22m / min
feed motor 2,2kW
lifting engine 0,25kW
electric adjustment of planing thickness +
central lubrication of the top +
length of the countertop 1970 mm

diameter of the extraction nozzle 4x120mm, 140mm
dimensions length / width / height 3500x1450x1600mm
weight around 1700kg
