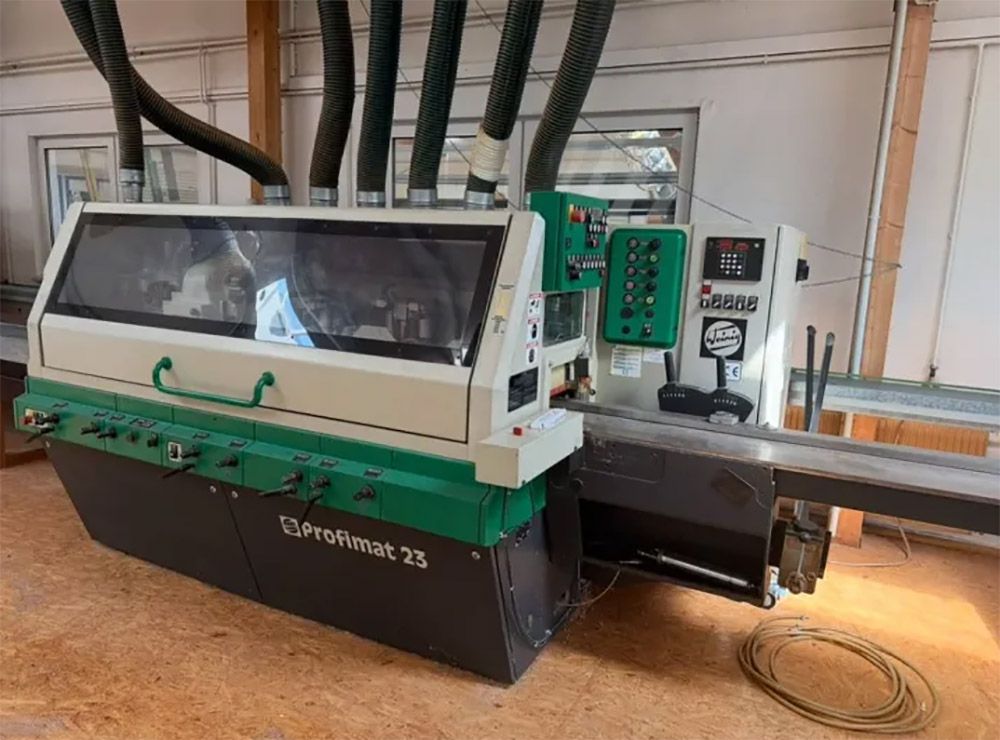

Weinig Profimat 23

Four-Sided Planing / Moulding Machine
The machine is used and in good condition.

Technical Specifications:
Max. Working Width (Planing): 230 mm
Max. Working Height: 120 mm
Feed Speed: Infinitely variable, up to 24 m/min
Spindle Speed: 6,000 rpm
Spindle Diameter: 40 mm

Spindle Motor Power:
Horizontal spindles: 5.5 kW
Vertical spindles: 7.5 kW
Total Power: Approx. 22 kW

Machine Dimensions & Equipment:
Machine Size (L × W): Approx. 3,400 × 1,600 mm
Weight: Approx. 3,000 kg
Extraction Ports: 4 × Ø 140–180 mm

Key Benefits:
230 mm width / 120 mm height – ideal for doors, windows, and profile timber
Adjustable feed speed up to 24 m/min ensures excellent surface quality
Modular spindle configuration up to 7 spindles for flexible machining tasks
High spindle speed (6,000 rpm) and robust motors for powerful cutting performance
Heavy-duty construction with cardan-driven feed system
Large extraction capacity and standard industrial voltage compatibility
