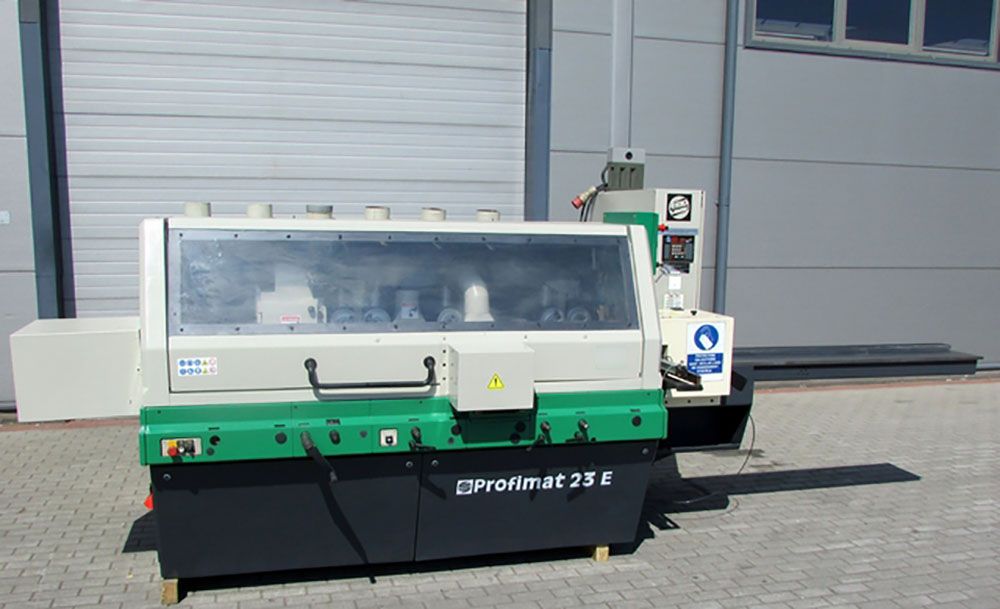

Weinig PROFIMAT 23E ATS/5 230/120

Four-sided planer
Planing width: 230 mm
Planing height: 120 mm
Electronic planing width control
Lower spindle: 4 kW
Right spindle: 4 kW
Left spindle: 4.2 kW (face milling)
Right spindle: 4.2 kW (face milling)
Top spindle: 7.5 kW
Workpiece width measurement
Electric height adjustment of the feed rollers
Electric height adjustment of the top spindle
Spindle diameter: 40 mm
Six steel top rollers
One rubber top roller
One pull roller in the table
Pneumatic clamp
Feed on cardan shafts
Pre-cut table length: 2470 mm
Connection diameter: 140 mm
Machine dimensions (L/W/H) 456 / 240 / 220 cm
Weight 4000 kg

Modern technology is significantly changing the production of wooden windows.
The WEINIG four-sided planer we offer is equipped with:
- two saw units,
- three round head units
