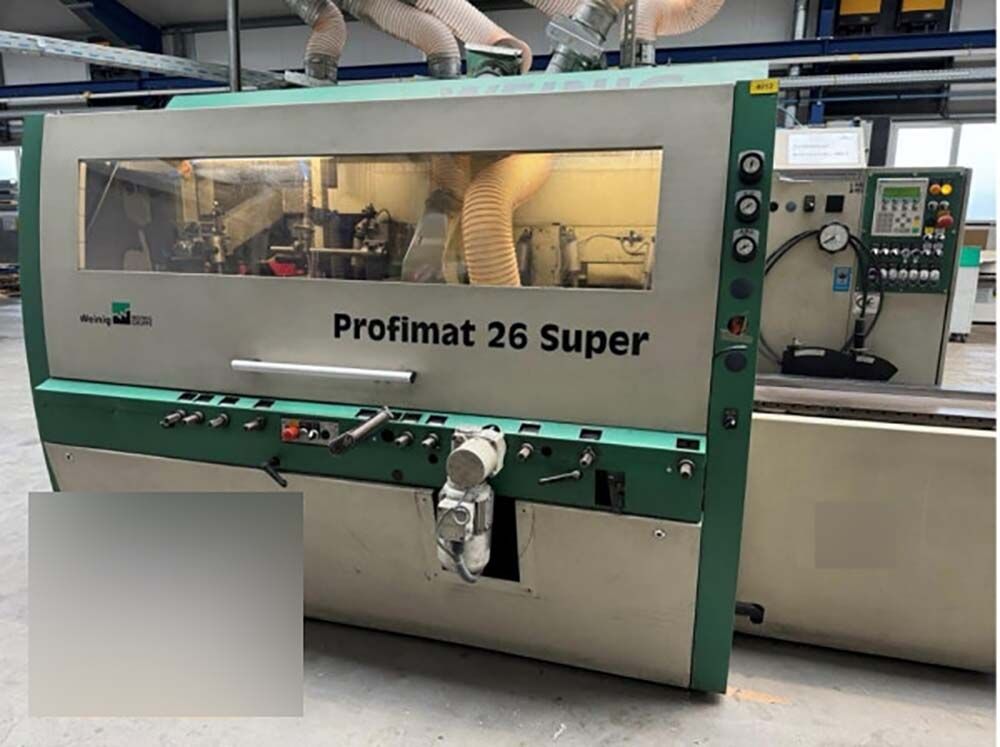

Weinig Profimat 26 Super

Used machine
Plastic equipment
1st spindle, lower horizontal spindle
11 kW
Diameter 40 mm
Speed: 6,000 rpm Shaft without rebating device
without planer spindle can be retrofitted

2nd spindle, right vertical spindle
shared motor with left vertical spindle 11 kW
Diameter 40 mm
Speed: 6,800 rpm

3rd spindle, left vertical spindle
shared motor with right vertical spindle 11 kW
Diameter 40 mm
Speed: 6,800 rpm

4th spindle, upper horizontal spindle
11 kW
Diameter 40 mm
Speed: 6,800 rpm

5th spindle, lower horizontal spindle
11 kW
Diameter 40 mm
Speed: 6,800 rpm

6th spindle: Universal spindle, 360°
11 kW
Diameter: 40 mm
Speed: 6,800 rpm

Feed system:
5-24 m/min
Motor: 4 kW

Planing table: 2.5 m

Operation:
Both axes of all spindles (except the 1st spindle) are equipped with mechanical digital displays.

ATS system
Automatic 2-axis control for spindles 3 and 4
