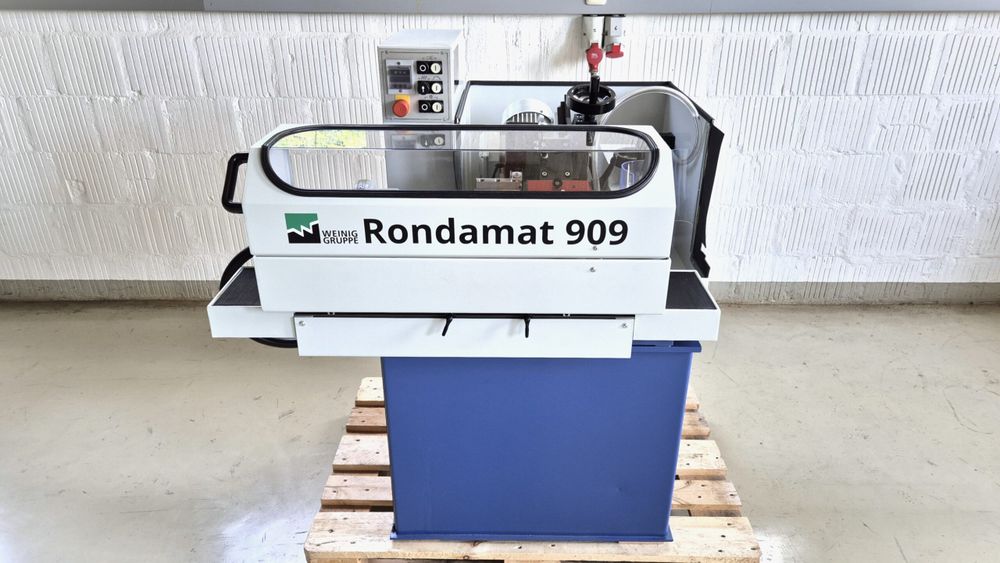

Weinig Rondamat 909

Machine for automatic sharpening of straight knives in the planer head
Automatic pitch
Planer head diameter min. 85 mm to max. 225 mm
Tool length max. 330 mm (table stroke 440 mm)
Any number of cutting edges
Clearance angle continuously adjustable from 15° to 35°
Grinding spindle speed n=4000 rpm
Grinding wheel D=125 mm, bore d=20 mm
Grinding motor 1.1 kW, n=2850 rpm
Feed motor 0.053 kW, n=1300 rpm
Grinding speed 650 mm/min
Partial motor 0.033 kW, n=1.00 rpm
Freely selectable grinding cycles per tool 1–5
Coolant pump motor 0.065 kW, n=2900 rpm
Coolant / Tank capacity approx. 115 liters
Mandrel diameter = 50 x 330 mm
Machine complete with accessories

Machine dimensions:
Width 1,150 mm
Depth 820 mm
Height 1,200 mm
Weight 450 kg
