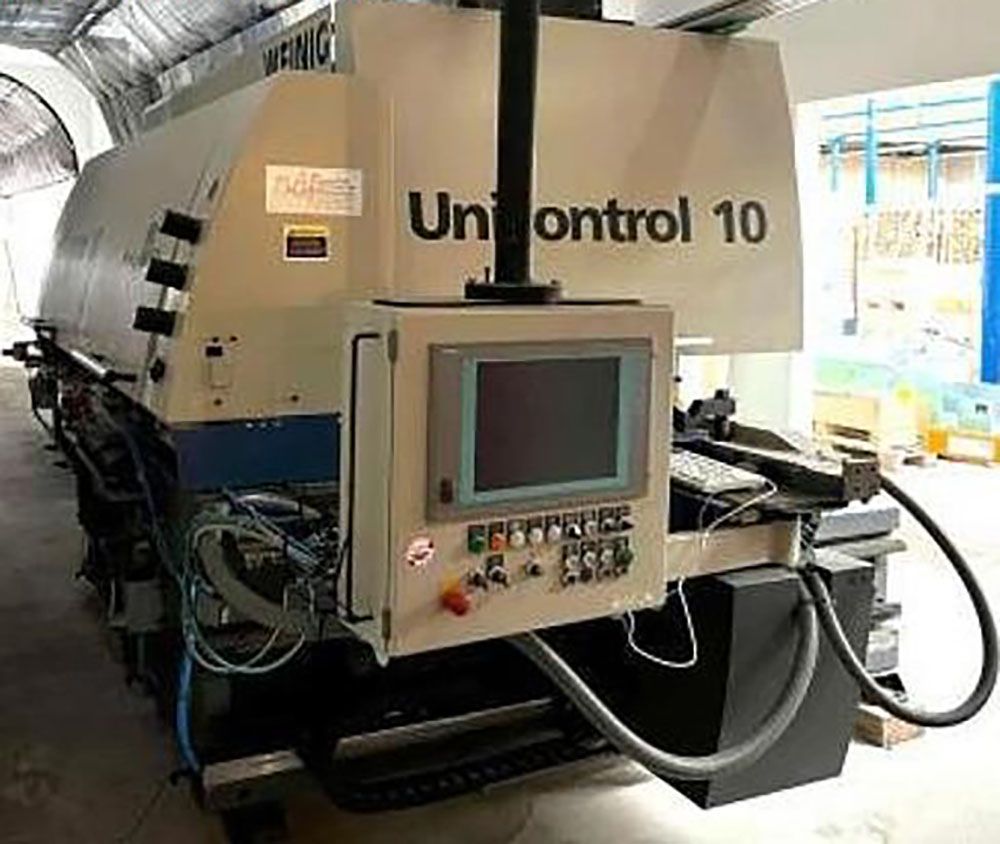

Weinig Unicontrol 10 NC

CNC - radial and axial spindles CNC controlled with the following machining units:

Crosscut saw with laser alignment light, motor power 3 kW, spindle diameter 40 mm,
spindle speed 3,000 rpm
Axially adjustable via NC axis
Radial pneumatic adjustment to 8 positions for edge rounding from above

Unit from below for edge rounding
Axially adjustable with crosscut saw

Tenon and slotting spindle
Motor power 15 kW
Spindle diameter 50 mm
Spindle speed 2,925 rpm
Tool travel radius min. 380, max. 400 mm
Tool clamping length 640 mm
Axis adjustment - CNC axis
Axis adjustment range 580 mm
Adjustment speed 100 mm/sec.

1. Profile spindle (up- and down-rotation)
Motor power 11 kW
Spindle diameter 50 mm
Spindle speed 6,000 rpm
Tool clamping length 400 mm with counter bearing
Axially and radially adjustable via CNC axis

2. Profile spindle
Motor power 11 kW
Spindle diameter 50 mm
Spindle speed 6,000 rpm
Tool clamping length 400 mm with counter bearing
Axially and radially adjustable via CNC axis

Profile milling unit horizontally mounted on top
Motor power 3 kW
Spindle diameter 40 mm
Spindle speed 9,000 rpm
Pneumatically adjustable to 8 axial and radial positions

Profile milling unit vertically mounted on the right side Machine end
Motor power 3 kW
Spindle diameter 40 mm
Spindle speed 5,850 rpm
Pneumatic adjustment to 8 axial and radial positions

Additional accessories:
CNC-controlled length stop, mounted on the slotting table
for lengths up to 3,500 mm, including a positioned cross-cutting saw integrated into the control system.
Studio window device, pivots 60° on both sides
Double-part package with automatic separation and transfer
Synchronization device with automatic window rebating
Rebating carriage for rebating small sash widths
Air conditioning unit in the control cabinet
PC control NEXUS
Automatic turning system
Slat conveyor, including conveyor belt for returning the workpieces to the operator
