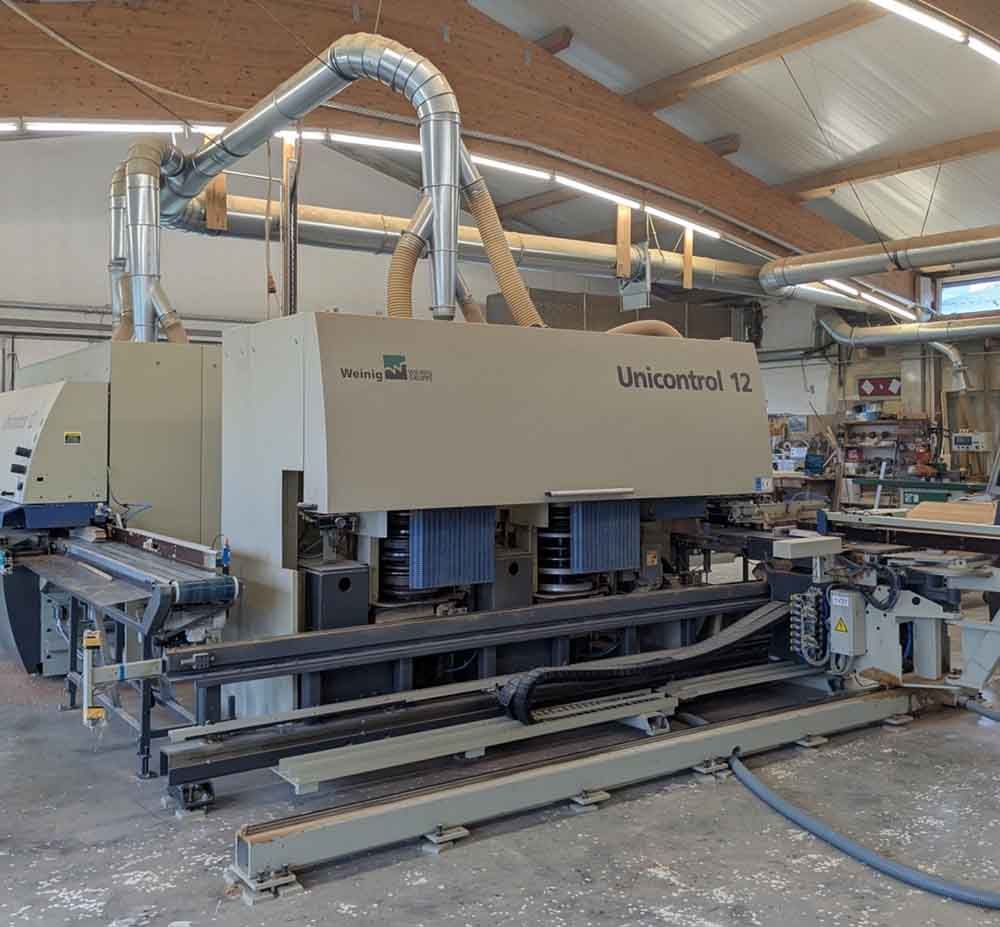

Weinig Unicontrol 12

Includes Leitz IV 68/ IV 78 wood and IV 68 wood-aluminium tools.
Machine still in operation until approx. end of October 2025

Technical manufacturer's description:
> Slotting spindles: 2
> Profile spindles: 3
> Horizontal spindles: 3

> Max. workpiece length: 4,500 mm
> Max. workpiece width: 220 mm
> Max. workpiece thickness: 120 mm
> Edge rounding device
> Controlled horizontal spindle
> Separate gear groove spindle

> Slotted spindle: 640 mm
> Profile spindle: 400 mm
> Automatic top rung support
> Synchronous spindle: 400 mm
> Gear groove spindle: 160 mm
> Total spindle stroke: 590 mm
> Spindle diameter: 50 mm

> Flight circle profile tool: 140 mm
> Flight circle slotting tool: 300 mm
> Stepless spindle stroke
> Radial spindle adjustment: NC axis, pneumatic
> Electronically controlled length stop
> Inclined window
> Angle stop, mitre difference compensation
> Equipped for rebating
> Splinter protection rebating
> Automatic counter wood
> Workpiece return: longitudinal conveyor, turning station, cross conveyor
> Turning system
> Max. feed rate 10 m/min
> Stepless feed rate
> PC control
> Profile splitting
> Double part package
> Weinig Nexus touchscreen
> Space requirement (length x width): 14.7 metres x 12.7 metres
Includes tools: IV 68/ IV 78 wood, IV 68 wood-aluminium.
