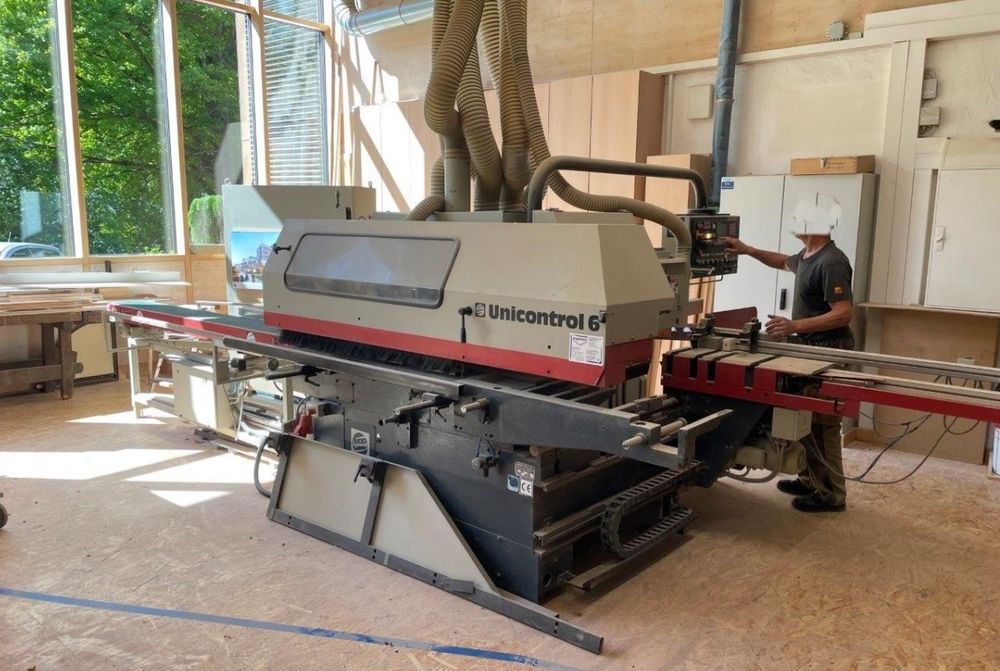

Weinig Unicontrol 6 with GLS

1. Crosscut saw
Pneumatic crosscut saw, against 8-way turret stop
Spindle speed: 2800 rpm
Spindle diameter: 40 mm
Max. tool diameter: 350 mm
Motor power: 3 kW
Laser alignment light for detecting the saw cut:
Manual length stop 4100 mm

1. Tenon and slotting spindle
Number of tools: 3 / 4
Tool clamping length: 320 mm
Vertical pneumatic spindle stroke: 240 mm for wood thicknesses IV 68-92
Spindle speed: 3500 rpm
Spindle diameter: 50 mm
Max. tool diameter: 320 mm
Motor power: 11 kW

1. Profiling spindle - synchronous and counter-rotating spindle
Position: vertical right
Number of tools: 1
Tool clamping length: 120 mm
Spindle speed: 6000 rpm
Spindle diameter: 50 mm
Maximum tool radius: 232 mm
Motor power: 7.5 kW

2. Profiling spindle
Position: vertical right
Number of tools: 3 / 4
Tool clamping length: 320 mm
Vertical pneumatic spindle stroke: 240 mm for wood thicknesses IV 68-92
Spindle speed: 6000 rpm
Spindle diameter: 50 mm
Maximum tool radius: 232 mm
Motor power: 11 kW

3. Profiling spindle (fitting spindle)
Position: vertical right
Number of tools: 3
Spindle speed: 6000 rpm
Spindle diameter: 40 mm
Maximum tool radius: 180 mm
Motor power: 3 kW
Clamping length: 150 mm

4. Glazing bead saw (horizontal-vertical) Cycled
Position: horizontal, top
Number of tools: 1
Tool clamping length: 40 mm
Spindle diameter: 40 mm
Motor power: 3 kW
Axial cycle, 2 positions
Radial cycle, 2 positions

Other features :
Flanging device for tear-free flanging
Double parts package
Return device for 1-person operation at working height: Swivel bath
Screen control, 99 programs
Sloped window device
Electronic angle display for sloped windows

Optional window tools OPPOLD, year of manufacture 2013:
Oppold IV 68/78/92 Wood
Oppold IV 68/78 Wood-Aluminum
