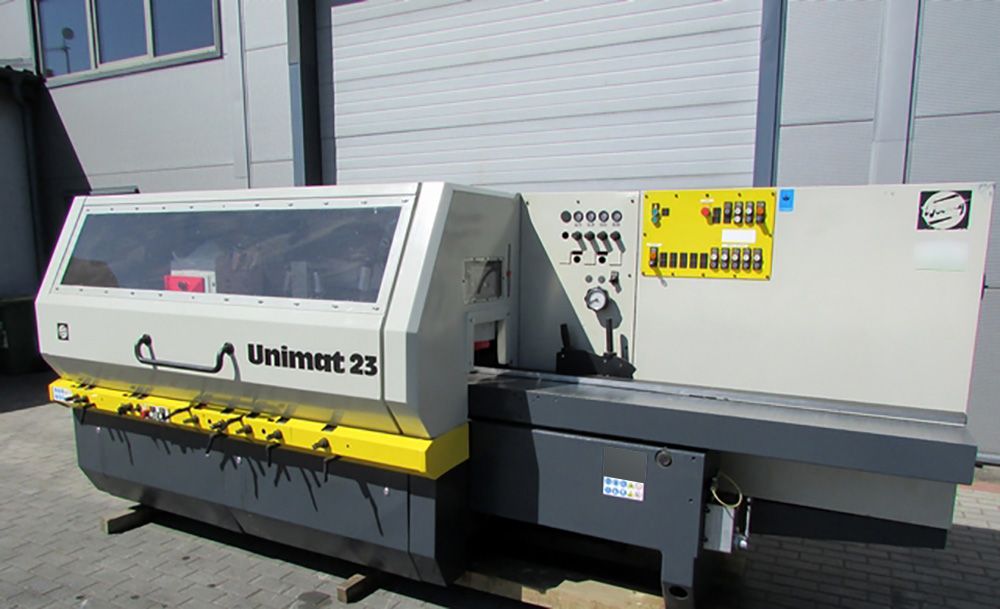

Weinig Unimat 23/5 230/160

Planing width 230 mm
Planing height 160 mm
Rubberized tabletop
Spindle diameter 40 mm
1st lower spindle 7.5 kW
2nd right spindle 7.5 kW
3rd left spindle 7.5 kW
4th upper spindle 11 kW
5th lower spindle
5 motors, each spindle with a separate 7.5 kW motor

Continuously adjustable feed rate 6-36 m/min
Feed motor power 5.5 kW
Six upper steel pull rollers
Two upper rubber pull rollers
One pull roller before the first head
Three total pull rollers in the tabletop
Pneumatic feed pressure
Pneumatic shoe pressure
Spindles with brakes
Pre-table length 1970 mm
Electric height adjustment
Central lubrication (split)
Connection diameter: 140 mm
Machine dimensions (length/width/height): 410/200/180 cm
Weight: ~ 3000 kg
