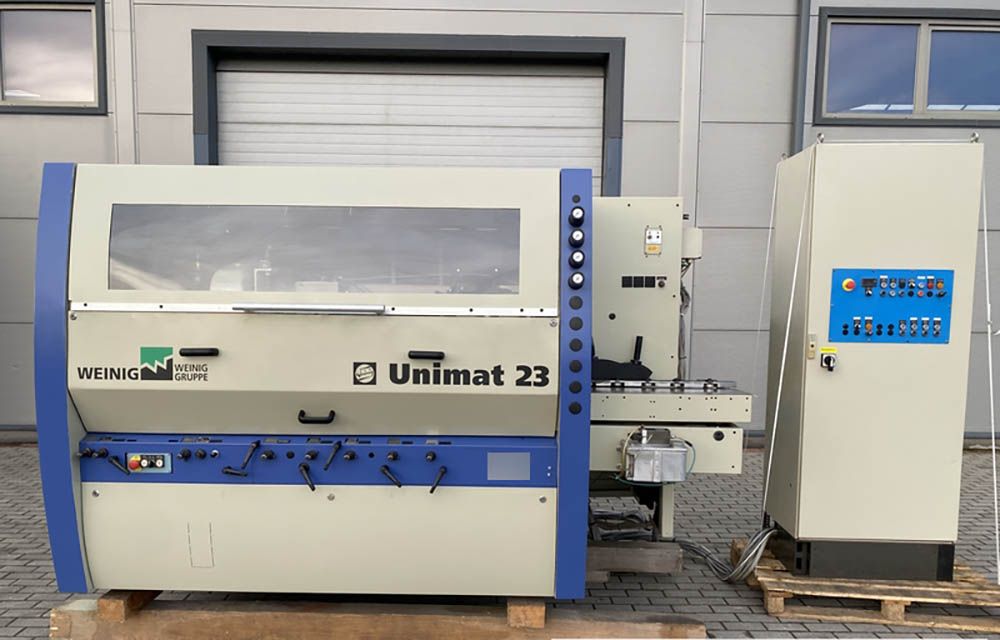

Weinig Unimat 23 E / 5

Four-sided planer
Planing width 230 mm
Planing height 170 mm
Electric height adjustment
Spindle diameter 40 mm
1st lower spindle 7.5 kW
2nd left spindle 11 kW
3rd right spindle
4th upper spindle 11 kW
5th lower spindle 5.5 kW
Continuously adjustable feed rate 6-38 m/min
Feed motor power 4 kW
Pre-cut table length 1000 mm
Electric brakes
5 upper steel pull rollers
One upper rubber pull roller
Two pull rollers in the table, one toothed
Air cushion in the table
Pneumatic clamp
Feed on cardan shafts
Connection diameter 5 x 140 mm
Central lubrication in the table
Machine dimensions (L/W/H) 390 / 210 / 230 cm
Weight ~ 4000 kg
