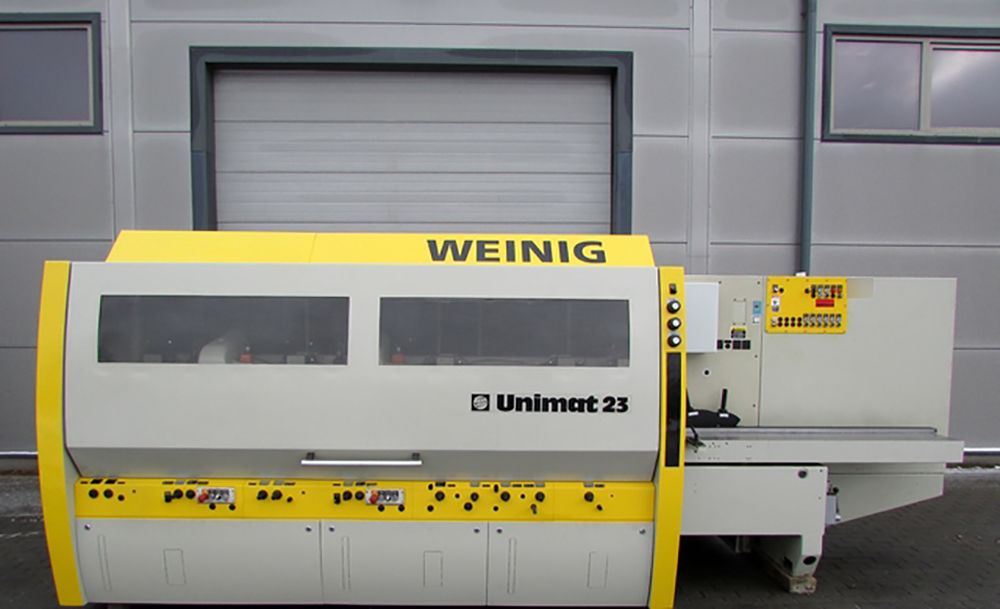

Weinig Unimat 23EL / 230/170/6

Four-sided planer
Width of planing 230 mm
height of planing 170 mm
1 spindle lower 7.5 kW
2 right spindle 7.5 kW
3 spindle left 7.5 kW
4 spindle upper 7.5 kW
5 lower spindle 7.5 kW
6 upper spindle 7.5 kW
diameter of the spindle 40 mm
electric height adjustment
five upper steel rolls
four rubber upper rolls
one roll in the counter
pneumatic clamp
length of the table top 1980 mm
central lubrication
feed adjustable on the inverter
turnover 6-26 m/min
8000 rpm
feed on the embankments cardan
feed motor power 4 kW
diameter of the connector 140 mm
dimensions of the machine (L/W/H) 520 / 210 / 210 cm
weight 4000 kg
