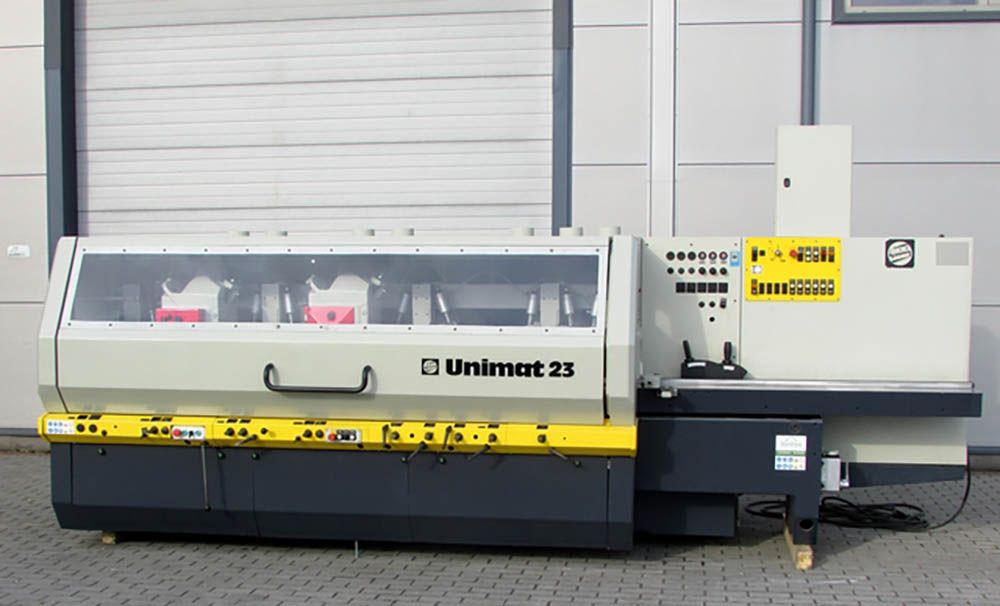

Weinig Unimat U 23 / 6

Four-sided planer
Planing width 230 mm
Planing height 160 mm
Pulling rollers in the table
Spindle diameter 1-4 - 40 mm
Spindle diameter 5-6 - 50 mm
Lower spindle 1 7.5 kW
Right spindle 2 7.5 kW
Left spindle 3 7.5 kW
Upper spindle 4 7.5 kW
Upper spindle 5 7.5 kW
Feed motor power 4 kW
Feed continuously adjustable via inverter 5-60 m/min
Joints on the last two heads
Five upper steel pulling rollers
Four upper rubber pulling rollers
Four table pulling rollers
Pneumatic clamp
Feed on cardan shafts
Electric brakes
Electric height adjustment
Pre-cut table length: 1950 mm
Connection diameter: 140 mm
Machine dimensions (length/width/height): 685/230/230 cm
Weight: 4000 kg
