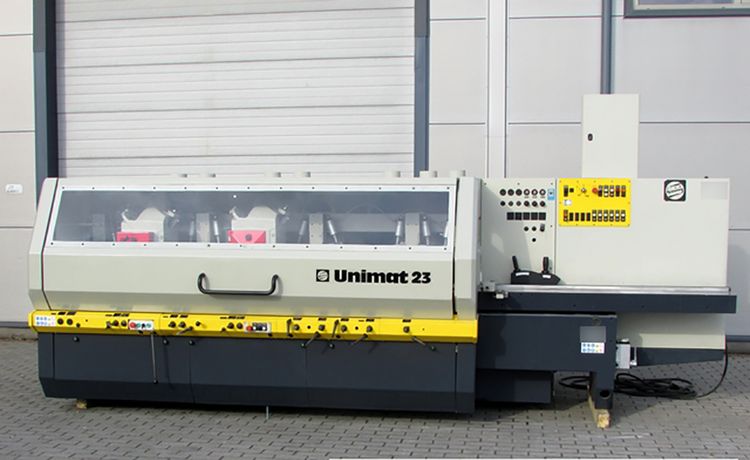

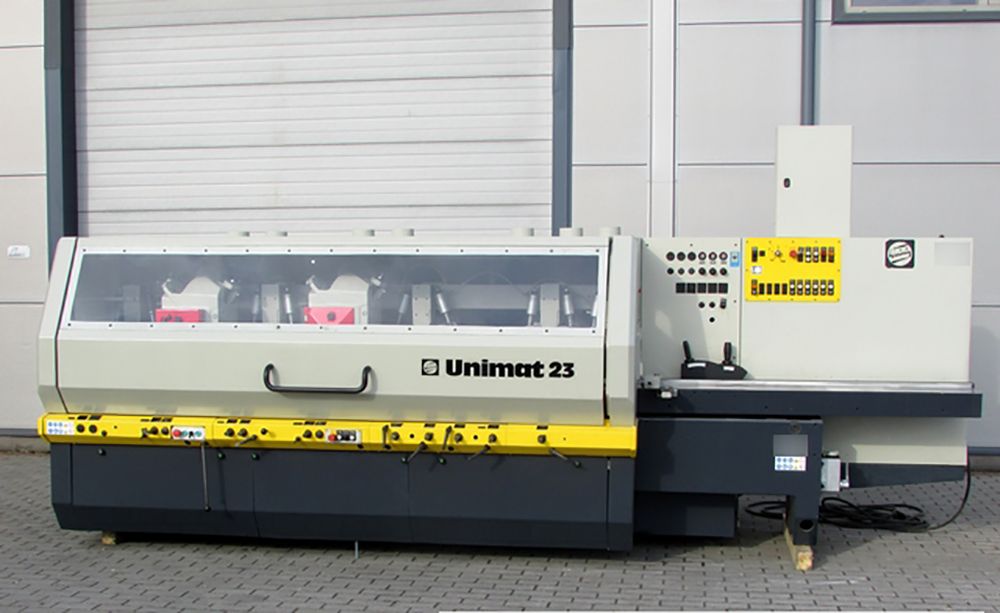

Weinig Unimat U23 / 230/160/6

Width of planing 230 mm
height of planing 160 mm
rollers in the pulling countertop
diameter of the spindle 1-4 - 40 mm
diameter of the spindle 5-6 - 50 mm
1 spindle lower 7.5 kW
2 right spindle 7.5 kW
3 spindle left 7.5 kW
4 spindle upper 7.5 kW
5 lower spindle 7.5 kW
6 upper spindle 7.5 kW
feed motor power 4 kW
feed adjustable smoothly on the inverter 5-60 m/min
joints on the last two warheads
five top rolls of pulling steel
four top rubber pulling rollers
four rolls in the pulling countertop
pneumatic clamp
feed on the embankments cardan
electric brakes
electric height adjustment
the length of the pre-top 1950 mm
diameter of the connectors 140 mm
dimensions of the machine (L/W/H) 685 / 230 / 230 cm
weight 4000 kg
