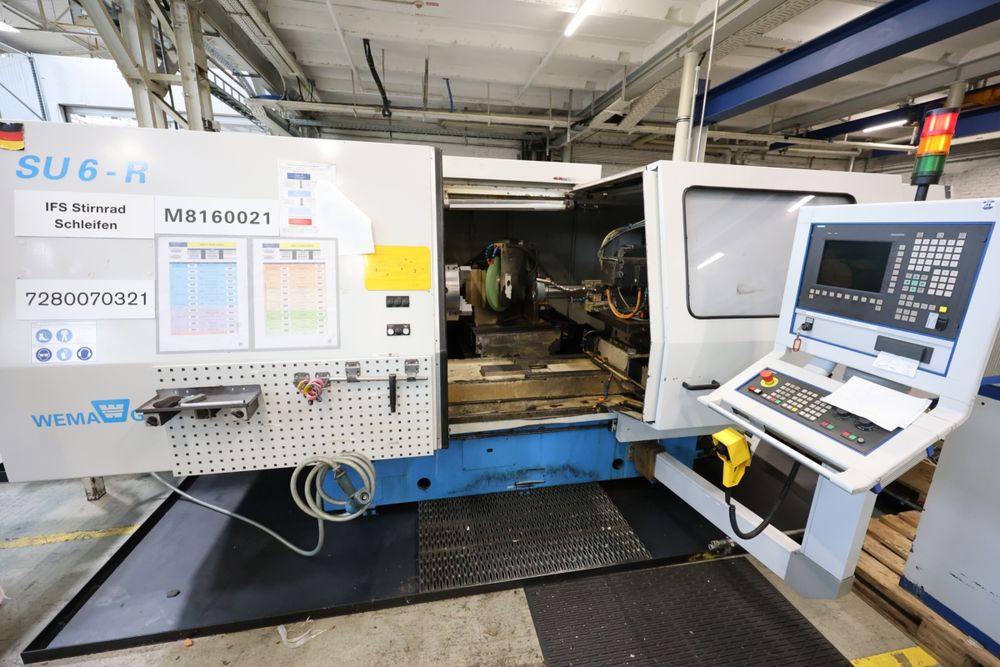

Wema SU 6-R

U-axis travel: 300 mm
B1-axis swivel angle: -1° to +12°
Workpiece spindle speed range: 1–795 RPM
Jogging speed: 10 RPM
Spindle head size: A8 (DIN 55026)
Spindle through-hole diameter: 58.5 mm
Max workpiece diameter: 830 mm
Max workpiece length: 600 mm
Max spindle head load capacity: 6100 N
Z1-axis travel: 800 mm
X1-axis travel: 150 mm
B2-axis swivel angle: 270°
Internal grinding spindle drive power: 7.5 kW
Grinding block mounting hole diameter: 100 mm
Max grinding diameter: 600 mm
Max grinding depth: 600 mm
Manual longitudinal adjustment of internal grinding axis: 530 mm
