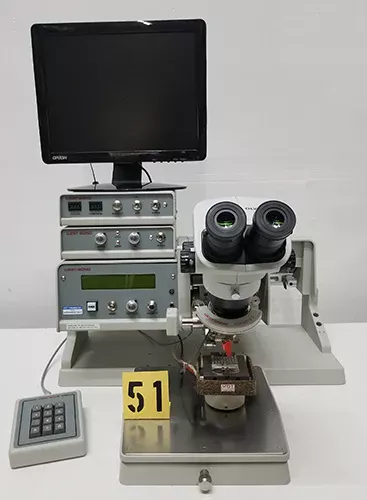

West Bond 4KE Bonder

• Type: Semi-Automatic Wire Bonder
• Design: Gantry, above work plane
• Bonding Modes: Wedge-Wedge, Ball-Wedge convertible
• Y/Z Axes: Motorized, program-controlled
• X/Y Axes: Manually driven via micromanipulator
• Brakes: Pneumatic, independent in X and Y
• Looping: Programmable for parallel, single, or multiple arched wires
• Force Mechanism: Dual, pneumatically operated
• Force Range: 10 – 150 grams (high/low programmable)
• Wire Compatibility (Au/Al): 0.7 to 3 mil
• Ribbon Compatibility: 0.5×2 to 1×10 mil
• Ball Bonding (Au): 0.7 to 2 mil
• Heat Source: Radiant tool heat with panel-mounted control
• Control: Constant current heater control
• Camera: Vertical view CCTV with crosshairs for targeting
• Memory: Retains all bond variables and settings per mode
• Conversion: Quick tool/wire clamp change for mode switching
• Power: 115V, 50/60Hz, 3.2A
