WFL MILLTURN M40-G/3000 5 Axis

Axis travel Z: 3150 mm
Axis travel X: 600 mm
Axis travel Y: -100 / +150 mm
B axis: -110° / +110°
C axis: 360° x 0.001°

Control: SIN 840 D Siemens
Main spindle speed: max 4000 rpm
Main spindle power: 29 kW
Spindle head: DIN 55026 A8
Spindle diameter front bearing: 140 mm
Spindle bore: 77 mm
Counter spindle speed: max 4000 rpm
Milling spindle speed: 1–9000 rpm
Milling spindle taper: HSK 63

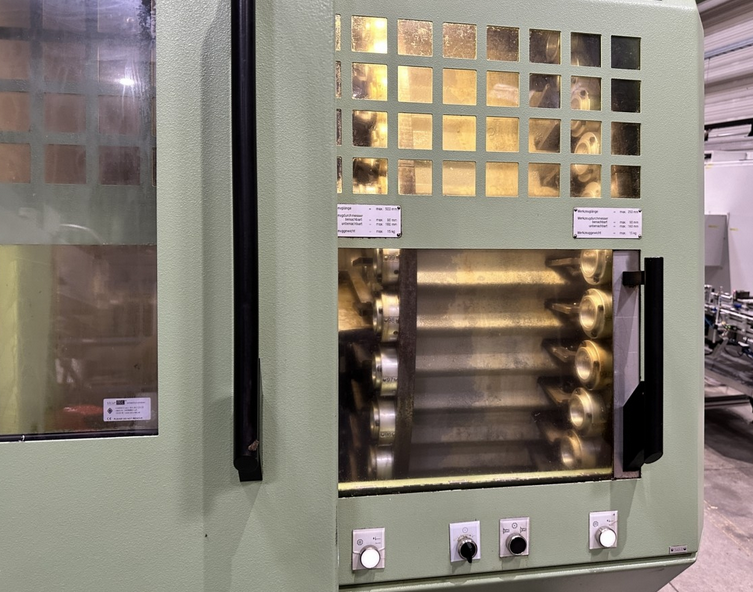

Tool magazine capacity: 100
Feedrate Z axis: 1–40000 mm/min
Rapid traverse Z axis: 40 m/min
Feedrate X axis: 1–30000 mm/min
Rapid traverse X axis: 30 m/min
Turning diameter: 520 mm
Turning length: 3000 mm
Rated current: 168 A
Output: 117 kVA
Total power requirement: 145 kW
Machine weight: 24 t
Machine dimensions: 10.40 x 4.90 x 3.20 m

Hydraulic power chuck SMW-Autoblok KNCS-N 225-65 main and counter spindle
Partial hollow clamping Ø60 x 1000 mm main and counter spindle
SMW steady rest type KLU-222-ZSW Ø20–254 mm
Coolant band filter system POLO SB-A0.4 V1=100L / V2=1100L
Chain oil skimmer Flexo
Cooling lubricant care Hamma Mikro 1000
Electronic hand wheel
Infrared probe
Pickup station for 3 tools max length 1000 mm
Tool changer with double gripper
Integrated extraction system LTA AC3001 R Solid
Chip conveyor
Leveling elements
Wooden grates
