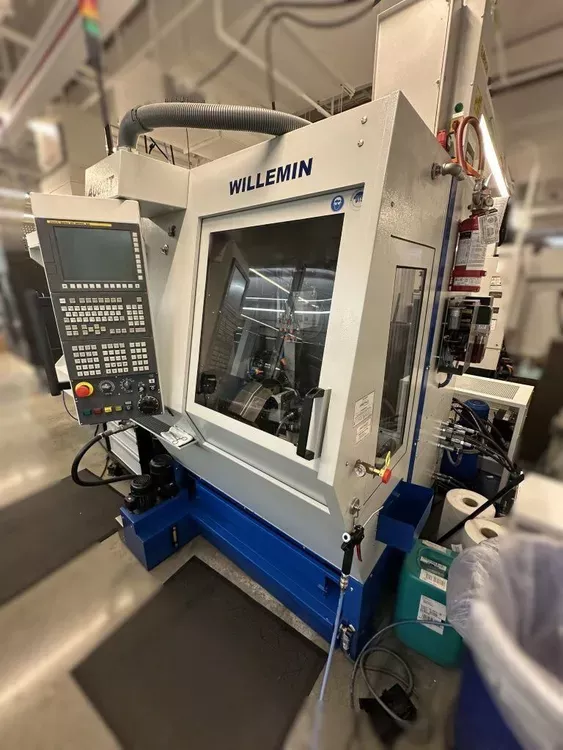

Willemin 408MT 7 Axis

Axis travel X: 250 mm
Axis travel Y: 200 mm
Axis travel Z: 300 mm
Total number of axes: 7 (X, Y, Z, A, B, U, W)
W-axis angular positioning accuracy: ±0.02°
Control: FANUC 31i-B5
High-speed machining package HPCC
Look-ahead capacity: 1,000 blocks
Integrated data server
Ethernet interface
Extended program memory: 3,900 KB
Timer start function
Dynamic thermal stabilization for machine base
Spindle thermal management system
Complete thermal compensation package
Oil vapor extraction system with dual filtration
Touch probe for tool measurement
Spindle probe for in-process measurement
Rotary axis calibration system
Broken tool detection minimum diameter: 0.2 mm
Maximum bar length: 500 mm
Maximum bar diameter: 27 mm
Collet chuck system F35
Automatic back-working device with hydraulic vice
Mill/turn capability
Maximum turning speed: 6,000 rpm
Spindle speed: 42,000 rpm
Spindle motor power: 10 kW
Spindle motor power: 13 hp
Spindle interface: HSK-E40
Tool magazine capacity: 48 tools
Dual-disc tool magazine
Machine hours: 505 hours
