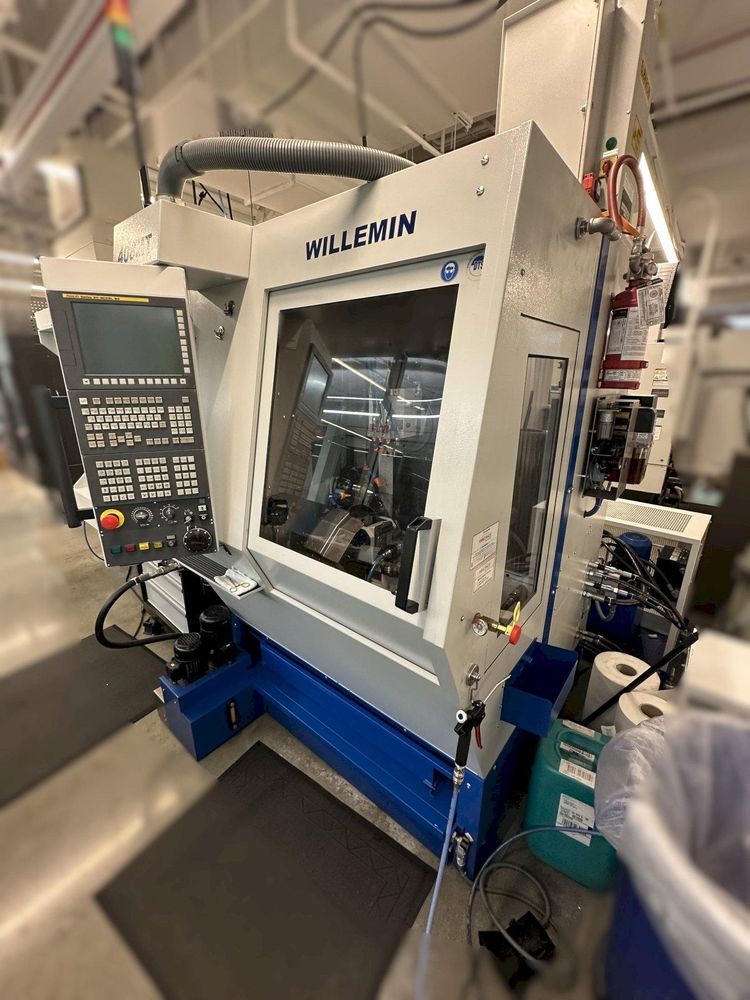

Willemin 408MT 7 Axis

7-axis simultaneous mill-turn center
High-speed motor spindle package
Air/oil spindle lubrication system
Automatic back-working device with hydraulic vice
Bar feed system
Collet chuck system F35
Angular positioning W-axis for turning tools
Dynamic Thermal Stabilization system
Spindle thermal management system
Oil vapor extraction system with dual filtration
Thermal compensation package
Tool measurement touch probe
Spindle measurement probe
Rotary axis calibration system
Broken tool detection system
High-speed machining software package
Timer start function
Integrated data server
Extended program memory
Advanced tool center point control
Advanced tool compensation functions

X-axis travel: 250 mm
Y-axis travel: 200 mm
Z-axis travel: 300 mm
Total axes: 7
U-axis automatic back-working
W-axis angular positioning ±0.02°
CNC control: Fanuc 31i-B5
Positioning resolution: 0.0001 mm
Bar capacity: 27 mm
High-speed spindle speed: 42000 rpm
Spindle motor power: 10 kW
Spindle interface: HSK-E40
Mill/turn spindle speed: 6000 rpm
Tool capacity: 48 tools
Tool magazine type: Dual-disc
Bar feed length: 500 mm
