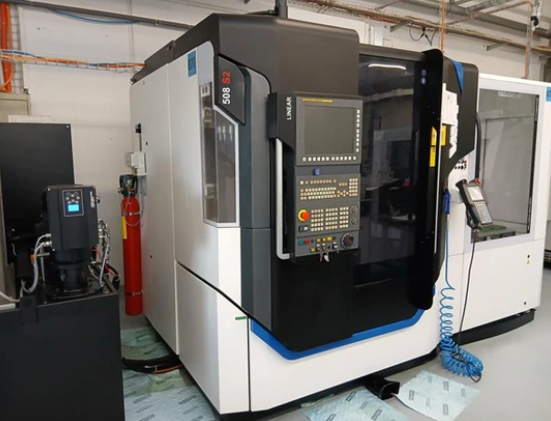

Willemin Macodel 508S2 6 Axis

X-Axis Travel: 400 mm
Y-Axis Travel: 200 mm
Z-Axis Travel: 385 mm
B-Axis Swivel: -100° / +30°
Rapid Traverse: 60 m/min
Acceleration: 10 m/s2
6 Axes
CNC Control: Fanuc 31i-B5
Loading Robot
Coolant System
BLUM 3D Z-MT Tool Setter
Renishaw OMP400 Touch Probe
Tool Break Control
Lamp
Donaldson DMC-MINI-MMA Oil Mist Extractor
Turbo Separator Type 10 Coolant Filter
Spindle Cooling
Coolant Temperature Stabilization
Automatic Central Lubrication
Fire Extinguishing System
Electrical Cabinet Air Conditioner
Foot Pedal
Status Light
Rotary Table Diameter: 180 mm
Maximum Table Load: 15 kg
Table Speed: 200 rpm
Holding Torque: 400 Nm
Spindle Taper: HSK E40
Spindle Speed: 50–42,000 rpm
Spindle Power: 10 / 15 kW
Maximum Torque: 8 / 12 Nm
Tool Magazine Capacity: 48
Maximum Tool Diameter: 50 mm
Maximum Tool Diameter (Adjacent Pocket Free): 80 mm
Maximum Tool Length: 130 mm
Maximum Tool Weight: 1 kg
Tool Change Time: 0.8 s
Chip-to-Chip Time: 3 s
Air Supply: 6 bar
Power Supply: 3 × 400 V, 50 Hz
Total Power Requirement: 35 kVA
Machine Dimensions: 1870 × 2210 × 22220 mm
Machine Weight: Approx. 5,000 kg
