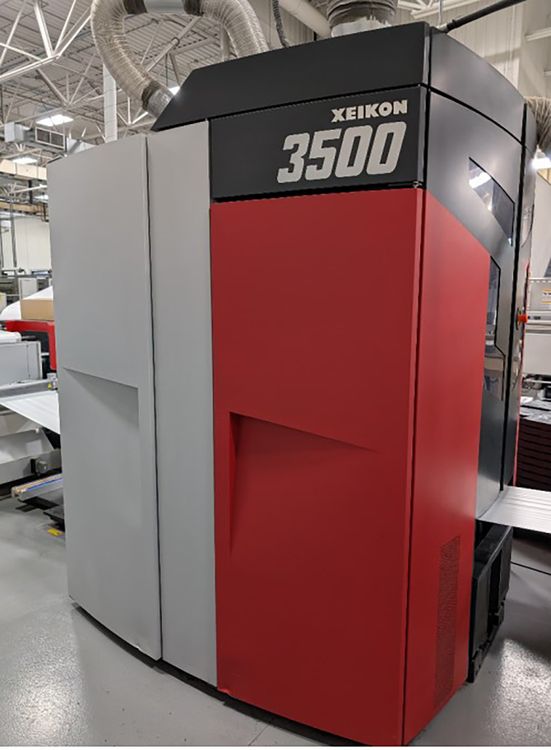

Xeikon 3500 + GM UC500 5 250-516 mm

Scope of delivery Xeikon Press + GM Coating/Priming System
Status Xeikon Service
Date of Installation 2011
Counter ca. 1,81 printed meter
Print Technology : Dry toner electrophotography
Imaging Head : High-Precision LED Matrix
Printing Engines : One-Pass, 5 (CMYK+White/Spot)
Media Input : Hunkeler Unwinder UW6
Media Output : Rewinder
Imaging Quality : 1200 x 3600 dpi, variable dot density
Media Width : 250-516 mm
TonerQA-I dry toner
Printing Speed : Up to 594 sqm/h
Media Weight : 40-350 g/m², 550 µm
Substrates : coated/uncoated Papier, PE, PP, PET, Vinyl, Coex-Folie
Digital Front End : Xeikon X-800

Description:
LOW USAGE: 1,81 Mio. printed meters (status from July 2025)
Print Technology: QA-I Dry toner electrophotography
Imaging Head: 5 x High-Precision LED Print Heads
Printing Engine: Simplex, 5 colours (CMYK + Spot or White)
Hunkeler Unwinder Model UW6
Vetaphone Corona Treating System, XEIKON PRESS 3500
Digital Front End: Xeikon X-800 with control PC and 2 monitors
Xeikon Software RIP
Machine is still under production, Machine was always in Xeikon service contract ______ GM UC500 / Universal Coating + Priming System
The converting line consists of a UV varnish, lamination/supergloss with length slitting
Operation can be both inline with a dancer or offline (optional unwind module)
Typical applications are banners, folders, post cards and roll-to-roll printed labels (not die cut).
Year of manufacture 2012, UV flexo varnish
Ultrasonic web guide, Pneumatic 76 mm spindles
Dual 76mm rewind with Ø 500 mm capacity
Touch display setting of label quantity per sheet and other job information
Automatic register control adjusts for changes in the web speed (cut to mark)
Web Width 100 – 500 mm
Substrate Thickness 60 – 200 microns
Max Web Speed up to 32 m/min
Rewinder with max diameter 500 mm
Flexo Station with print cylinder size 228 – 482,6 mm
Corona Treater Unit
Hot Air-Drying System, Length Slitting Knives Unit
Spot Varnish Unit
Exhaust 100 mm, 800 cbm/hour
Outside ______ GM ETV515E: Sheeter, Year of manufacture 2012
