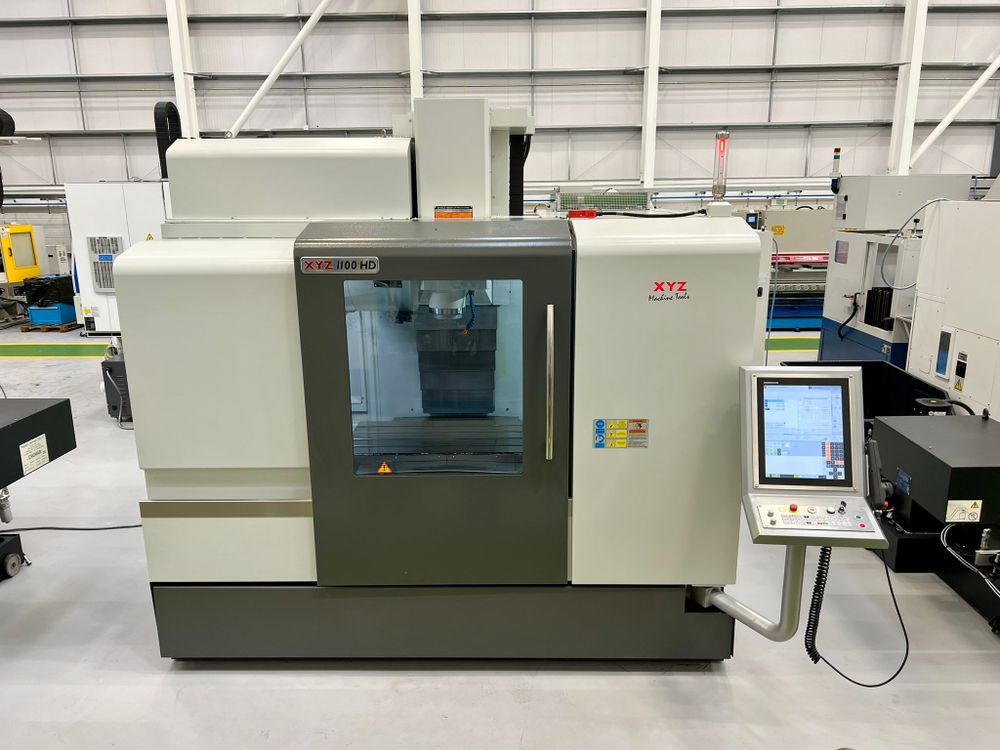

XYZ 1100HD Vertical Machining Centre 3 Axis

XYZ 1100HD Vertical Machining Centre
with Heidenhain Control
Year: 2021

Table & Travel:
Table size: 1200 x 600 mm
Travels (X / Y / Z): 1100 / 610 / 610 mm
Spindle centre to column: 675 mm
Spindle to table: 150 – 760 mm
Column front to table centre: 360 – 970 mm

Feedrates:
Rapid feedrate: 24 M/min
Cutting feedrates: 1 – 24,000 mm/min

Table & Load Capacity:
Max table load: 1,500 kg
T-slot size: 18 mm
T-slot number & pitch: 4 off @ 125 mm pitch

Spindle & Tooling:
Spindle speeds: 5 – 10,000 rpm
Spindle motor: 21 kW (28 hp)
Spindle taper: BT40
Toolchanger: 30-station, arm type
Toolchange time: 2.5 seconds
Max tool diameter: 78 mm
Max tool weight: 8 kg

Coolant & Capacity:
Coolant tank capacity: 240 L

Machine Dimensions & Weight:
Dimensions (L x W x H): 3250 x 3500 x 2810 mm
Approximate weight: 7,000 kg
