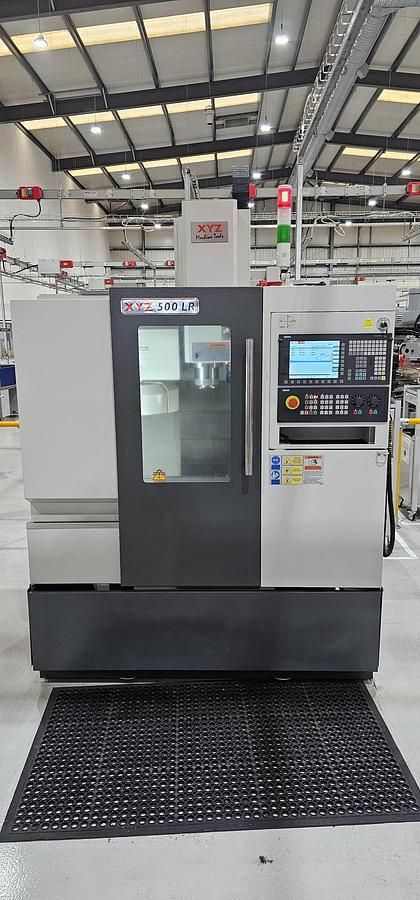

XYZ 500 LR 3 Axis

X-Axis Travel: 500 mm
Y-Axis Travel: 400 mm
Z-Axis Travel: 440 mm
Rapid Traverse (X, Y, Z): 20 m/min
Control: Siemens 828D with Shopmill
Optimised Digital Servo Drives
Rigid Tapping
Flood Coolant
Worklight
USB Port
Spindle Speed: 5 - 8000 rpm
Spindle Motor: 20 hp / 15 kW
Spindle Taper: BT 40
Feed Rate: 1 - 20,000 mm/min
Tool Changer Capacity: 12 Tools
Max Tool Diameter: 100 mm
Max Tool Weight: 7 kg
Table Size: 580 x 400 mm
Table Load Capacity: 250 kg
Distance Table to Spindle: 100 - 550 mm
Spindle Center to Column Face: 415 mm
Overall Dimensions: 1890 mm x 1982 mm x 2700 mm
Weight Approx.: 2100 kg
12 Station Carousel ATC
Easy Clean Swarf Tray
Steel Concertina Guards on All Axes
Powder Coated Guarding
