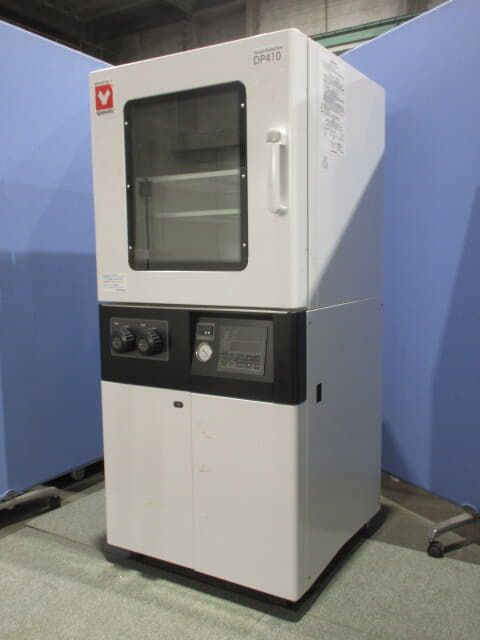

Yamato Scientific DP410 Vacuum Constant Temperature Dryer

Specifications]
Method: Vacuum drying by direct heating of pressure chamber
Shelves: 2
Temperature Range: 40°C~200°C
Internal Dimensions: W450×H450×D450mm
Casters: Yes
External Dimensions: W685×H1503×D835mm (DP410 only)
Weight: Approx. 210kg (DP410 only)
Programming Function: Yes
Power Supply: AC200V 1Φ 50/60Hz MAX 11.5 A
Other: 1 Overheating Prevention Device TS310
(100V separate power supply and separate thermocouple)
2 Cooling Trap CA301 (manufactured by Yamato Scientific Co., Ltd.)
Dehumidification capacity: Maximum 0.9kg (water-based)
External dimensions: W410 x H850 x D485 mm
Power supply: AC100V 50/60Hz MAX 6A
3 Vacuum pump included

Equipment status
Instruction manual included
*Power cable approximately 1.5m included (no power plug)
*In addition to the main unit, a separate 100V power supply is
required for the operation of the overheating prevention device,
cooling trap, and vacuum pump.
The vacuum pump uses a separate power supply from the main unit,
so it must be turned ON/OFF separately.
