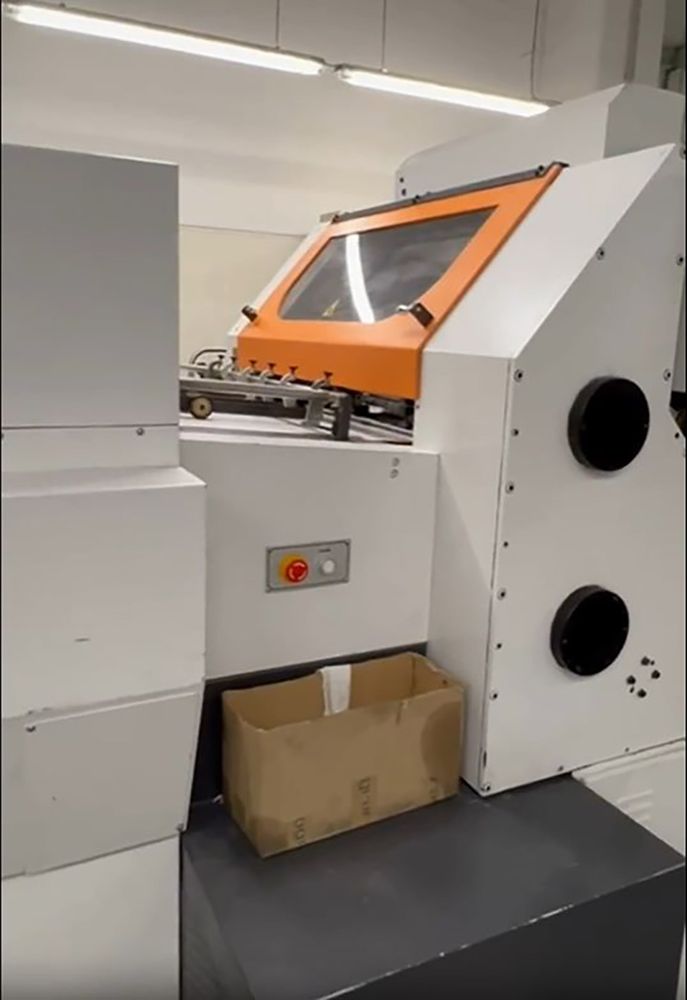

Yawa TDS 790

Options :
Maximum sheet size: 560mm x 790mm
Minimum sheet size: 210mm x 310mm
Maximum die cutting size: 520mm x 760mm
Maximum stamping size: 525mm x 760mm
Inside chase size: 350mm x 780mm
Height of cutting rules: 23.8mm
Inter-platen distance: 51.5mm
Maximum pressure: 120 x 10 (N) Stock Range Min. sheet: 90g/m²
Cardboard: 157~2000g/m²
Minimum gripper margin: 6mm
Maximum machine speed: 5,500 sheets per hour
Maximum stamping speed: 5,000 sheets per hour
Cutting plate thickness: 5mm (4+1)
Feeding pile height: 1,200mm
Delivery pile height: 950mm
Electric heating system: 8 zones
Foil feed devices: 3 foil feeding shaft longitidinal + 2 transveral
Max. diameter of foil roll: 210mm (3' core)
