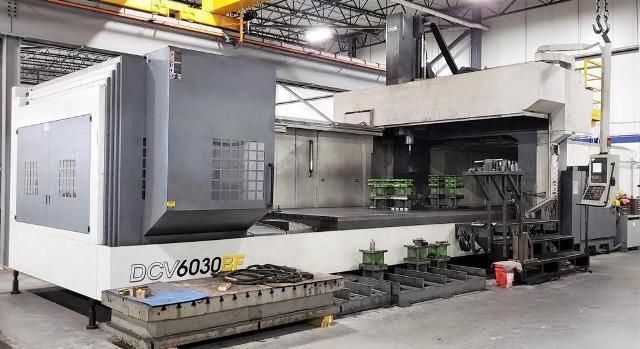

YCM DCV6030 BF 3 Axis

X axis travel 220 inch
Y axis travel 120 inch
Z axis travel 40 inch
Maximum distance spindle to table top 50.63 inch
Minimum distance spindle to table top 20.63 inch
CNC control Fanuc 200FB
Table size 236.22 x 118.11 inch
Maximum table load 55110 lbs
Effective width between columns 122 inch
Spindle speed 6000 rpm
Number of speed ranges 2
Spindle taper CAT 50
ATC capacity 60
Working feedrate X Y Z axes 0.04–394 ipm
Machine weight 153000 lbs
60-station automatic toolchanger
90 degree auto indexing right angle head (rebuilt recently)
Automatic attachment changer
High torque spindle
Full chip enclosure with roof
2 GB data server
High speed skip function
250 mm additional column height
Heidenhain scales on X Y Z
Through spindle coolant with filtration
Spindle load compensation
Marposs gauge tool laser measurement
Renishaw touch probe
Chip conveyor
Spindle chiller
Steel sliding way covers
