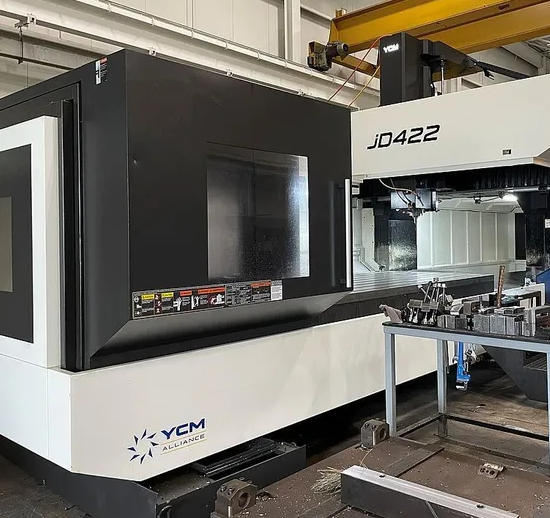

YCM jD422 Double Column Machining Center 3 Axis

YCM jD422
Year: 2022 (Low Hours)

Travel:
X-Axis: 165″
Y-Axis: 86.6″
Z-Axis: 30″

Table:
Working Surface: 70.87″ x 157.48″
Table to Spindle Nose: 7.87″ – 37.87″
Max Table Load: 33,000 lbs

Spindle:
Speed: 6,000 RPM
Taper: CAT 50 / BBT-50
Spindle Drive Motor: 35 HP

Feed Rates:
Rapid Traverse (m/min): X: 15 / Y: 20 / Z: 15
Cutting Feed Rate (mm/min): 1 – 10,000

Automatic Tool Changer:
Tool Magazine Capacity: 60
Max Tool Diameter (w/o Adjacent Tools): 9.45″
Max Tool Length: 13.78″
Max Tool Weight: 44 lbs

Control System:
YCM MXP-200FB+ (Fanuc 0iMF Platform), 3-Axis CNC Control

Machine Weight:
80,000 lbs
