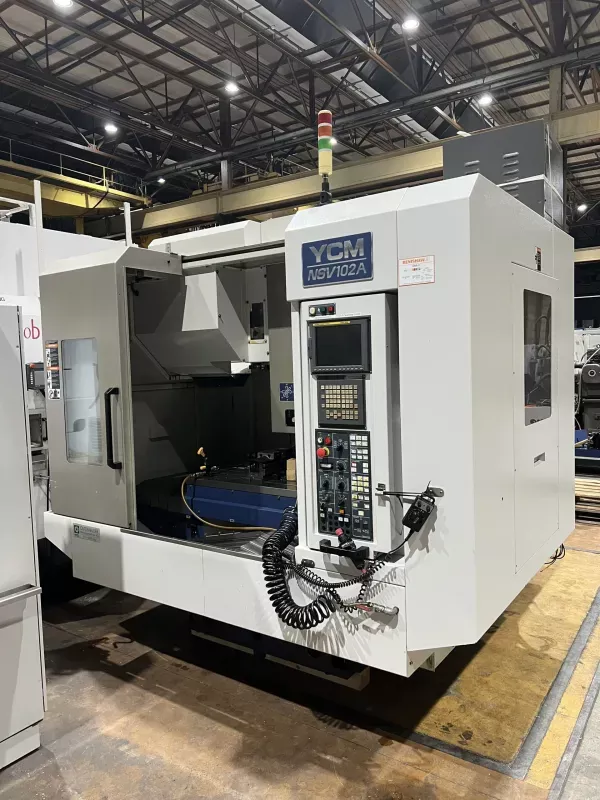

YCM NSV102A CNC Machining Center 4 Axis

X travel: 1020 mm
Y travel: 600 mm
Z travel: 600 mm
Distance spindle nose to work table: 100–700 mm
Rapid traverse X/Y/Z: 60/60/48 m/min
Feed: 1–20,000 mm/min
Spindle speed: 12,000 rpm
Spindle nose: BT40
Work table dimensions: 1120x650 mm
T-slots: 6x18 mm x 100 mm
Table load capacity: 1000 kg
Tool changer capacity: 30
Max. tool weight: 6 kg
Max. tool size: 76x300 mm
Positioning accuracy X/Y/Z: 0.032/0.025/0.025 mm
Repeatability X/Y/Z: 0.018/0.015/0.015 mm
Weight: 7000 kg
