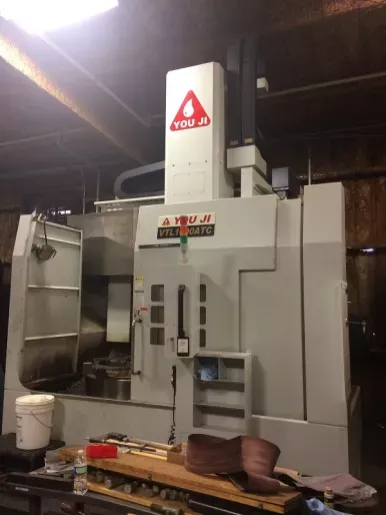

You Ji VTL-1000ATC Vertical Lathes

YouJi VTL-1000ATC – ID#30458
2012

Capacity: Table Diameter 39.4 "
Maximum Swing 53.2 "
Maximum Height Under Rail 35.4 "
Spindle: Spindle Speed: Minimum 1 rpm
Maximum 600 rpm
Motor 50/60 hp
Tool Changer: Number of Positions 12 atc
X-Axis Travel -15.7" / +28.3"
Z-Axis Travel 31.5"
Vertical Travel of Crossrail 19.7"
Maximum Table Load 8820 lbs
Dimensions: Floor Space 183" x 152"
Weight 46,300 lbs
Equipped With: Fanuc 18iTB CNC Control
12 Position Automatic Tool Changer
39.4" 4-Jaw hydraulic Chuck
2-Speed Gear Box
Remote Jog Handle (Hand Held)
Full Enclosure
All Available Manuals
Low Hours
